Relocatable construction perimeter system
Temporary Mesh Fence
A galvanized temporary mesh fencing family coordinated as welded panels, couplers, feet, braces and gates for short-term construction, event and controlled work-zone perimeters.
Provide the perimeter, height, duration, wind exposure, ground, traffic, gate schedule, movement plan and local temporary-fencing requirements.
- Panel
- Galvanized welded mesh frame
- Support
- Weighted feet, couplers and braces
- Duty
- Relocatable temporary perimeter
- Final basis
- Approved layout and quotation
Where this product family fits.
- Short-term construction, maintenance and event perimeters with managed access.
- Layouts that define feet, couplers, braces, gates, wind and relocation needs.
- Reusable panel supply supported by an approved temporary arrangement.
What must not be assumed.
- Crowd loading, vehicle impact, fall protection or high-security duty by default.
- Wind stability or public-safety performance inferred from panel and foot appearance.
- Representative building scenes treated as proof of installation or regulatory compliance.
Define these decisions before comparing configurations.
The page collects the variables that change suitability, scope and price. It does not replace the approved drawing, quotation or responsible engineering review.
Layout
Provide runs, corners, height and openings.
Sets quantities.Duration
State service period and relocation frequency.
Affects configuration and packing.Wind
Provide exposure, screening and design criteria.
Open mesh still carries wind load.Ground
Describe pavement, soil, slopes and anchor restrictions.
Controls foot and brace selection.Traffic
Identify pedestrians, crowds, carts and vehicles.
May require additional protection.Configurable specification sheet.
Values shown here describe the supply variables. Exact dimensions, finishes and components are confirmed for the project.
Send the missing inputs →| Field | Current supply basis | What to confirm |
|---|---|---|
| Panel | Galvanized welded mesh frame | Confirm mesh, tube and dimensions. |

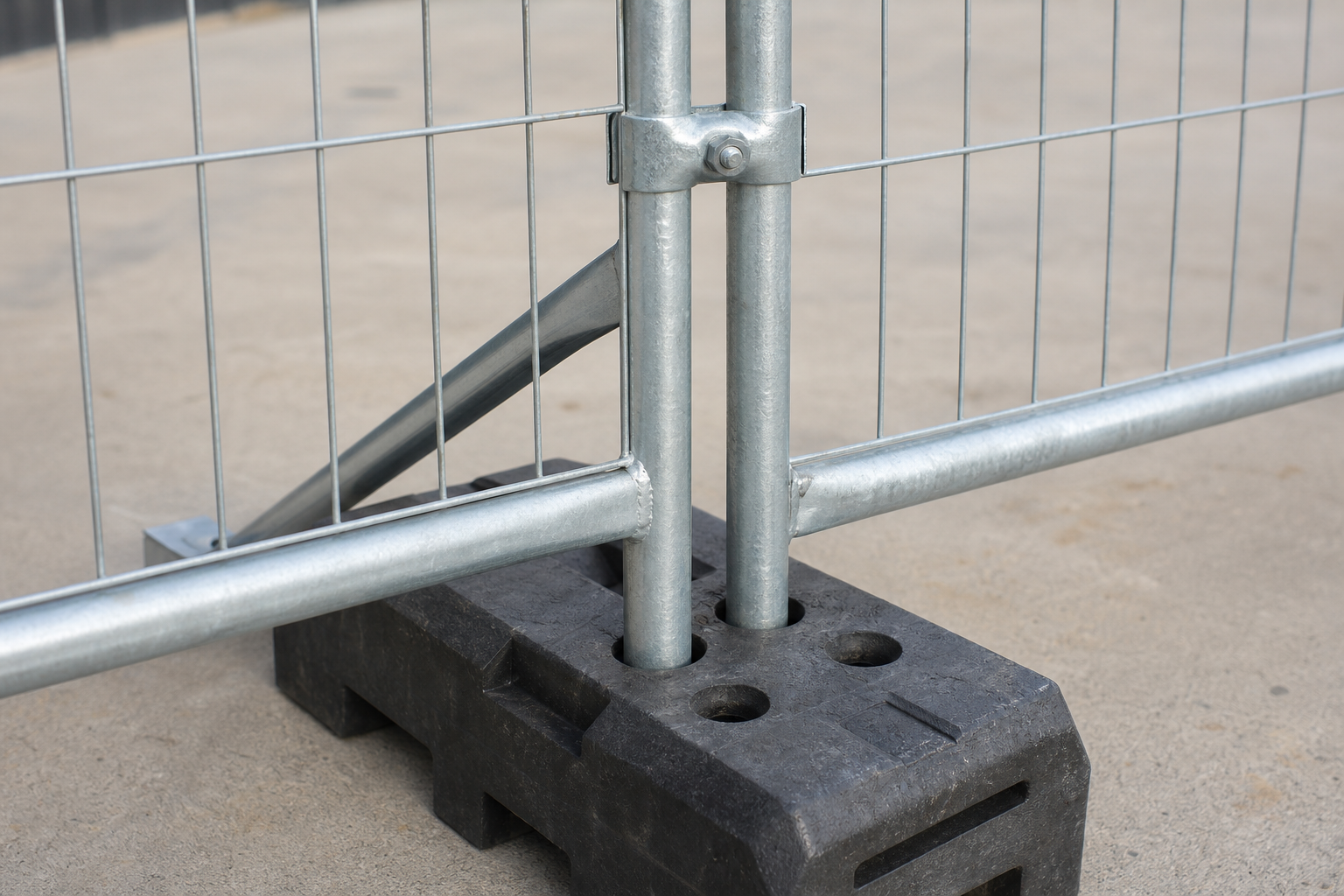

| Coupler | Top connection between adjacent panels | Confirm clamp and security needs. |
| Feet | Weighted polymer or project-selected bases | Confirm footprint and handling. |
| Bracing | Diagonal stabilizers by layout | State wind and corner requirements. |
| Gates | Personnel or vehicle openings by scope | Provide clear widths. |
| Finish | Galvanized or coated options | State exposure. |
| Final basis | Approved temporary layout and quotation | No load rating is implied. |
From requirement to approved supply.
The sequence keeps product selection, engineering responsibility and commercial scope aligned.
- 01
Define the duty
State what the system must separate, screen, protect or control and provide the applicable project criteria.
- 02
Confirm the layout
Provide dimensions, levels, corners, openings, supports and every site interface.
- 03
Review the configuration
Approve materials, finish, connections, accessories and the engineering or installation responsibility boundary.
- 04
Release supply
Confirm drawings, quantities, packing, destination, documentation and required delivery date.
See the system in context.
Each image explains a form, interface or possible application. Captions state where a drawing, sample or project review is still required.
Questions to resolve before purchase.
These answers define the quotation boundary without inventing project-specific performance.
What determines the number of braces?
Layout, height, wind, screening, duration, ground and gate locations must be reviewed together.
Can vehicle gates be included?
Yes when clear width, traffic, hardware, support and operating method are defined.
Is this crowd-control fencing?
Not automatically. Crowd loading and event management require separate criteria and review.

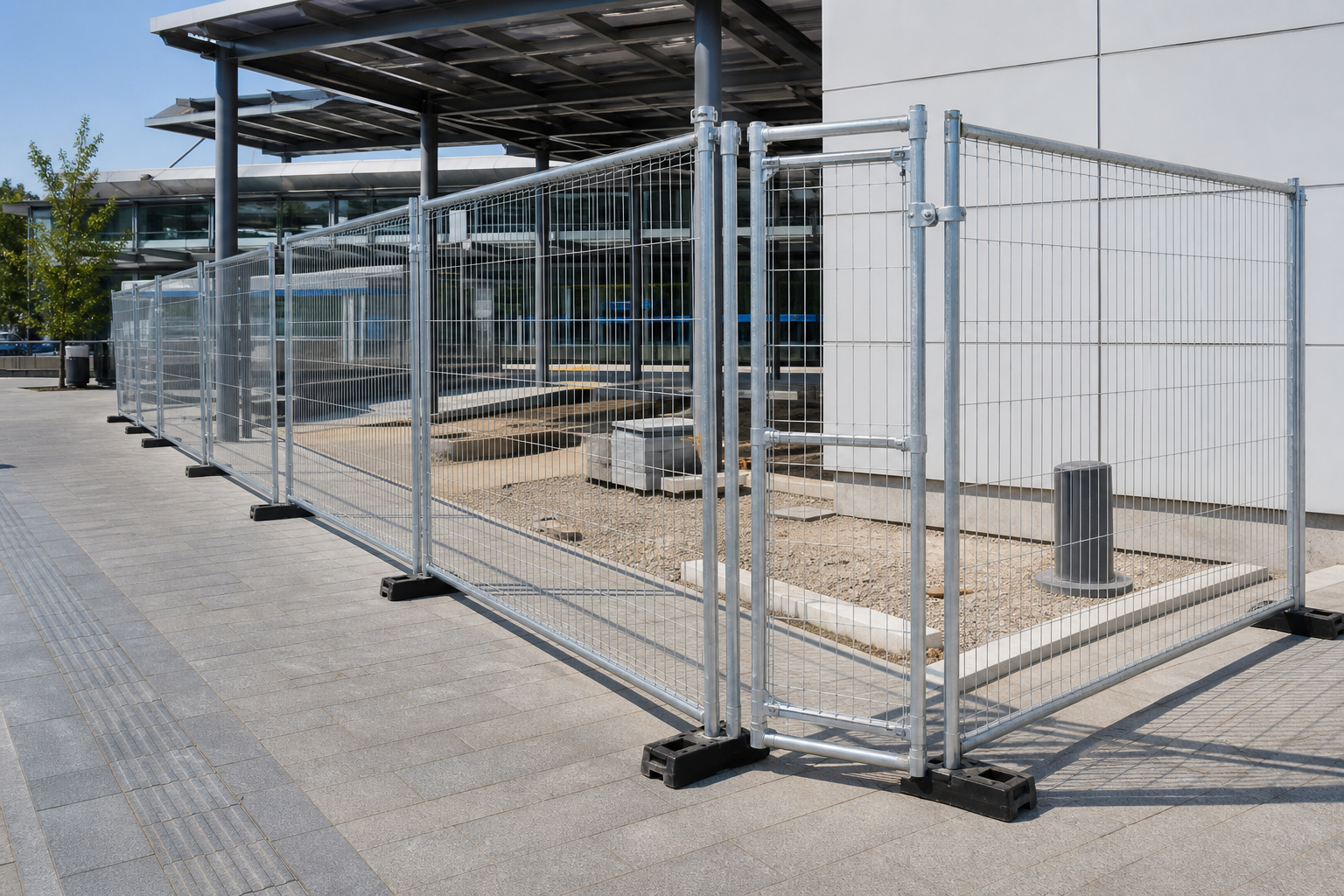

Is the building scene a completed project?
No. It is a representative application illustration, not installation or compliance evidence.
Complete the project brief
Keep this product inside the temporary-system decision path.
Confirm duty, layout, public interface, ground, exposure, support, gates, duration, inspection, packing and the responsible approval boundary.
Send a quote-ready brief.
Complete the known fields. If drawings or standards apply, mention them in project notes and attach them when your email application opens.
