Low tubular parking-zone barrier
Parking Protection Barrier
A yellow-and-black tubular steel barrier family for parking-bay zoning and low-level asset separation, configured by layout, rail height, posts, base plates, anchors and project-defined impact exposure.
Provide the protected object, vehicle path, required setback, layout, floor, anchor restrictions and any impact or traffic-management criteria before quotation.
- Form
- Rounded tubular steel rails
- Finish
- Yellow and black coated pattern
- Base

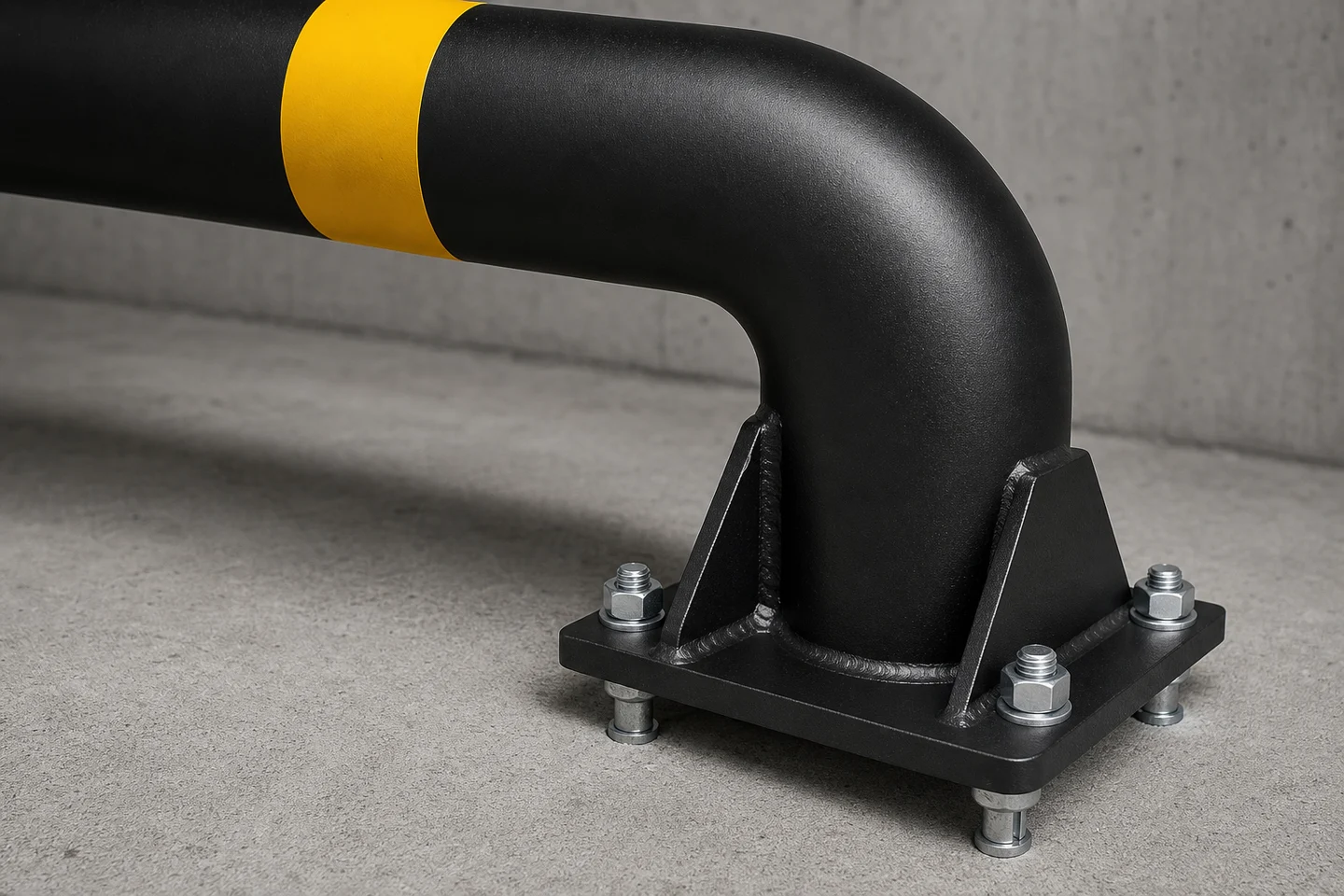

- Floor-mounted posts and plates
- Final basis
- Approved layout and quotation
Where this product family fits.
- Parking-bay and indoor traffic zoning where a low visible tubular barrier is appropriate.
- Projects that define vehicle path, setback, floor, anchors and protected assets.
- Modular rail layouts released after traffic and impact exposure review.
What must not be assumed.
- A crash rating, vehicle restraint or impact capacity inferred from tube size or colour.
- Anchor selection or slab suitability assumed without project information.
- Parking imagery treated as impact-test, customer-project or compliance evidence.
Define these decisions before comparing configurations.
The page collects the variables that change suitability, scope and price. It does not replace the approved drawing, quotation or responsible engineering review.
Vehicle path
Provide approach direction, speed controls and turning envelope.
Sets exposure and placement.Layout
Send lengths, corners, openings and rail height.
Controls fabrication.Setback
Confirm clearance between barrier, vehicle and protected object.
Prevents layout conflicts.Floor
Provide slab, anchors, services and restrictions.
Defines the base interface.Impact
State any required rating, test or design criteria.
Appearance is not performance evidence.Configurable specification sheet.
Values shown here describe the supply variables. Exact dimensions, finishes and components are confirmed for the project.
Send the missing inputs →| Field | Current supply basis | What to confirm |
|---|---|---|
| Rails | Rounded tubular steel members | Confirm diameter, rail count and height. |
| Posts | Welded uprights with base plates | Confirm spacing and geometry. |
| Base | Bolted floor-mounted plate | Provide slab and anchor criteria. |
| Layout | Straight, corner or bay arrangement | Send plan dimensions. |
| Finish | Yellow and black coated pattern shown | Approve colour and exposure. |
| Documentation | Layout and connection drawing by scope | State impact or approval needs. |
| Final basis | Approved layout and quotation | No crash or impact rating is implied. |
From requirement to approved supply.
The sequence keeps product selection, engineering responsibility and commercial scope aligned.
- 01
Define the duty
State what the system must separate, screen, protect or control and provide the applicable project criteria.
- 02
Confirm the layout
Provide dimensions, levels, corners, openings, supports and every site interface.
- 03
Review the configuration
Approve materials, finish, connections, accessories and the engineering or installation responsibility boundary.
- 04
Release supply
Confirm drawings, quantities, packing, destination, documentation and required delivery date.
See the system in context.
Each image explains a form, interface or possible application. Captions state where a drawing, sample or project review is still required.
Questions to resolve before purchase.
These answers define the quotation boundary without inventing project-specific performance.
Is this a crash-rated vehicle barrier?
No rating is implied. State any required test standard, load or vehicle-restraint duty for review.
What floor information is needed?
Provide slab thickness if known, reinforcement or services, anchor restrictions and exposure.
Can custom corners or lengths be supplied?
They can be reviewed from the parking and protected-asset layout.

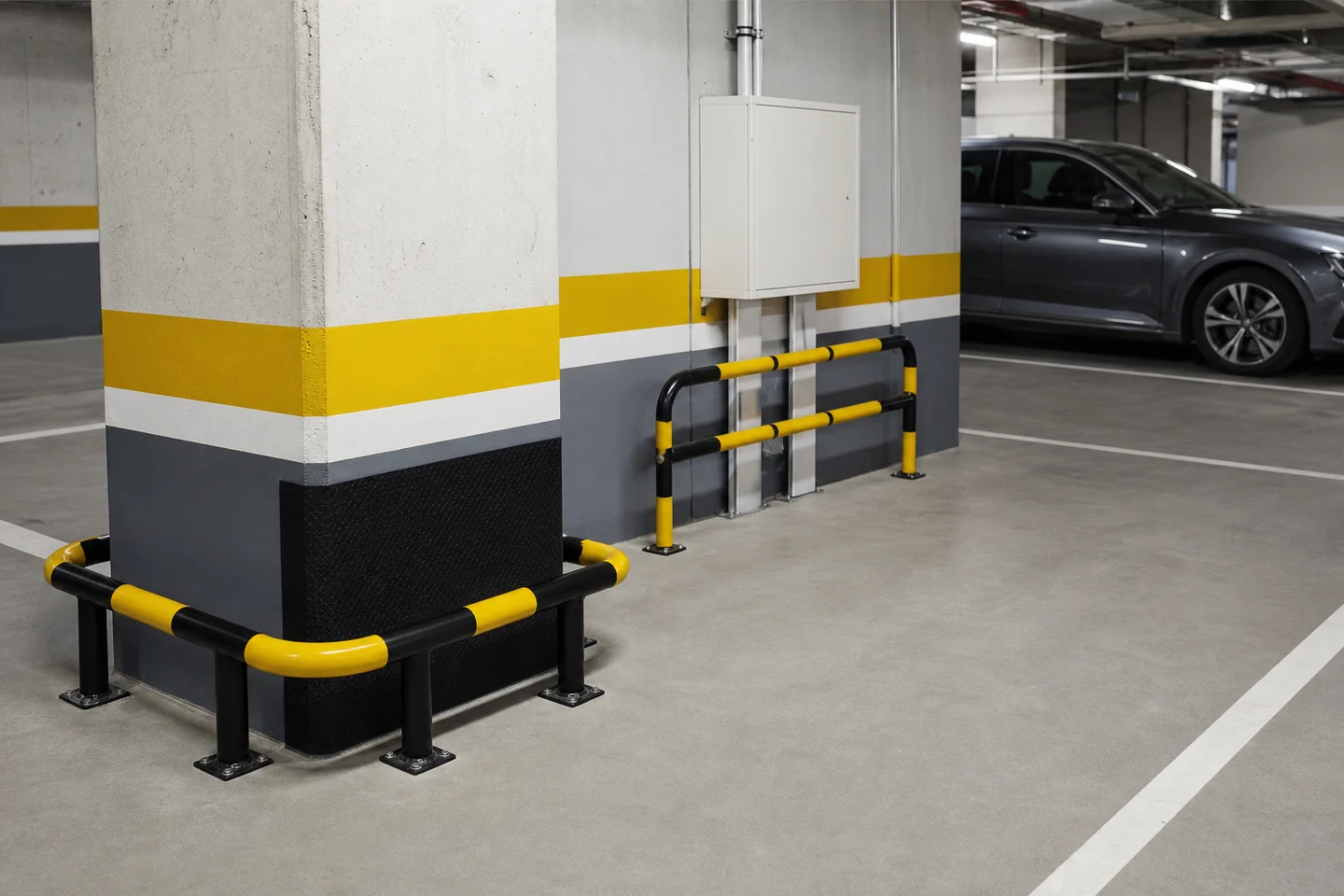

Is the garage image a completed customer project?
No. It is a representative application illustration, not impact or installation evidence.
Complete the project brief
Keep this product inside the temporary-system decision path.
Confirm duty, layout, public interface, ground, exposure, support, gates, duration, inspection, packing and the responsible approval boundary.
Send a quote-ready brief.
Complete the known fields. If drawings or standards apply, mention them in project notes and attach them when your email application opens.
Submitting this local form opens your email application. It does not transmit data to the website.
