Purpose
State the screening, access and public-interface duty.
Defines layout and review needs.Products / Temporary Fencing & Hoarding / Corrugated Steel Site Hoarding
Opaque temporary perimeter screen
Corrugated Steel Site Hoarding
A corrugated steel temporary hoarding family coordinated as opaque panels, galvanized posts, feet or anchors, rear braces, access openings and project-defined wind and ground interfaces.
Confirm the site perimeter, required height, wind exposure, ground or slab condition, brace space, gates, finish and local temporary-works requirements.
- Panel
- Corrugated steel sheet
- Support
- Posts, feet and rear braces
- Duty
- Temporary opaque site screening
- Final basis
- Approved layout and quotation
Where this product family fits.
- Temporary construction and works perimeters needing opaque screening and managed access.
- Projects able to define wind, ground, bracing space, height and gate openings.
- Panel, post and brace packages released from an approved temporary layout.
What must not be assumed.
- Wind stability, acoustic performance, vehicle impact or public protection inferred from sheet appearance.
- Foundations, ballast or anchors selected without ground and load information.
- Street and roadside photos used as proof of a site-specific temporary-works design.
Define these decisions before comparing configurations.
The page collects the variables that change suitability, scope and price. It does not replace the approved drawing, quotation or responsible engineering review.
Perimeter
Provide runs, corners, slopes and height.
Sets panels and posts.Wind
State exposure, design wind and duration.
Controls stability review.Ground
Describe soil, slab, pavement and anchor restrictions.
Defines feet or foundations.Bracing
Confirm available rear space and obstructions.
Braces require a clear footprint.Access
Schedule vehicle and pedestrian openings.
Keeps gates in the initial scope.Configurable specification sheet.
Values shown here describe the supply variables. Exact dimensions, finishes and components are confirmed for the project.
Send the missing inputs →| Field | Current supply basis | What to confirm |
|---|---|---|
| Panel | Corrugated steel sheet in framed module | Confirm profile, sheet and size. |
| Posts | Galvanized steel supports | Confirm spacing and height. |
| Bracing | Rear braces by approved layout | Provide footprint and loads. |
| Base | Feet, anchors or project-defined foundation | Confirm ground conditions. |
| Finish | Coated panel colour or printed face by scope | Approve colour and graphics separately. |
| Access | Matching gates by schedule | Provide clear openings. |
| Final basis | Approved temporary layout and quotation | No wind rating is implied by imagery. |
From requirement to approved supply.
The sequence keeps product selection, engineering responsibility and commercial scope aligned.
- 01
Define the duty
State what the system must separate, screen, protect or control and provide the applicable project criteria.
- 02
Confirm the layout
Provide dimensions, levels, corners, openings, supports and every site interface.
- 03
Review the configuration
Approve materials, finish, connections, accessories and the engineering or installation responsibility boundary.
- 04
Release supply
Confirm drawings, quantities, packing, destination, documentation and required delivery date.
See the system in context.
Each image explains a form, interface or possible application. Captions state where a drawing, sample or project review is still required.
Questions to resolve before purchase.
These answers define the quotation boundary without inventing project-specific performance.
How is wind stability determined?
Provide screen height, exposure, design wind, duration, ground and brace geometry for responsible review.
Can graphics be printed on the panels?
Colour or graphics can be reviewed separately from the structural and temporary-works scope.
Are gates available?
They can be coordinated when clear openings, traffic, travel, hardware and support are defined.

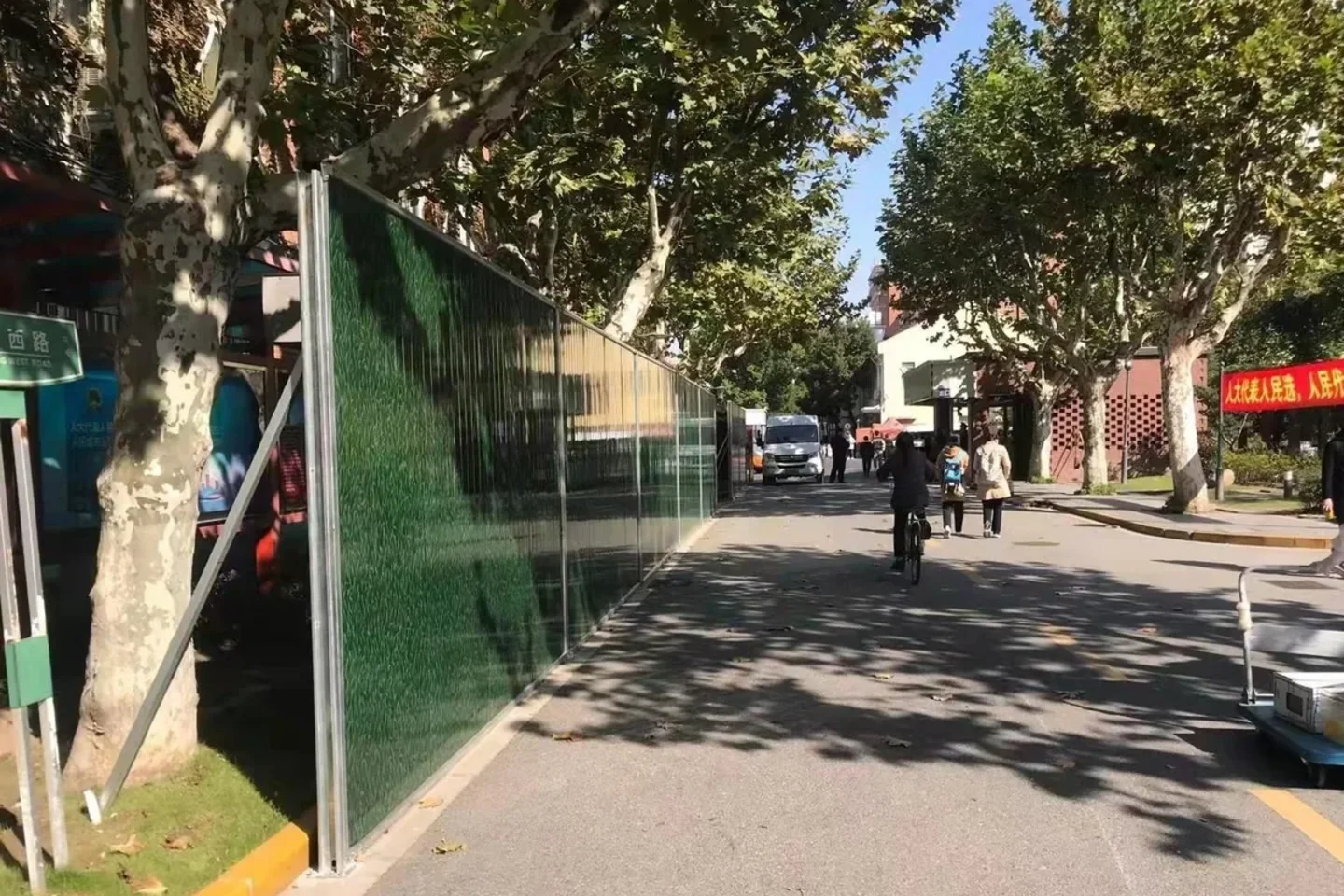

Are the street images completed projects?
They are product-family context and do not prove site ownership or design performance.
Complete the project brief
Keep this product inside the temporary-system decision path.
Confirm duty, layout, public interface, ground, exposure, support, gates, duration, inspection, packing and the responsible approval boundary.
Send a quote-ready brief.
Complete the known fields. If drawings or standards apply, mention them in project notes and attach them when your email application opens.
Submitting this local form opens your email application. It does not transmit data to the website.
