What this guide decides.
This page decidesWhich physical, electrical, operational and commissioning interfaces must be coordinated.
This page does not decideDetection probability, camera coverage, electric-fence safety or response performance without a project design and testing plan.
Begin with the operating concept.
Define what event must be detected or observed, where classification occurs, who receives the alarm, how they verify it and what response follows. Technology names alone do not create a security outcome.
Map physical interfaces.

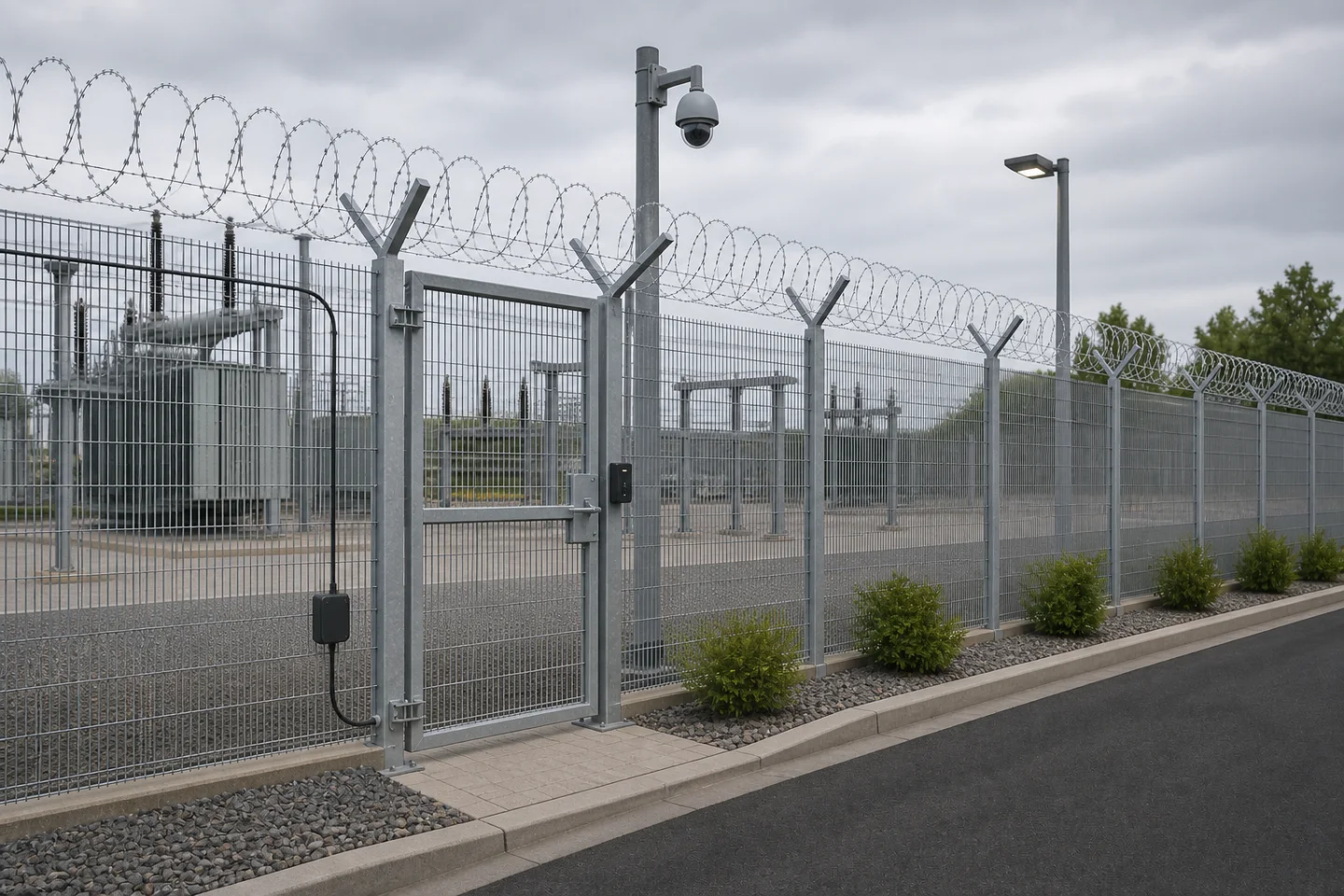

Reserve mounting zones, cable routes, junction positions, inspection access and clear sightlines. Check that toppings, signs, vegetation, lighting, gate travel and maintenance equipment do not obstruct cameras or create nuisance-alarm conditions.
Control system interactions.
Fence-mounted detection can react to panel vibration, weather, nearby traffic or maintenance. Camera analytics depend on view, lighting and background. Electric-fence additions introduce safety, earthing, segregation, warning and local compliance requirements.
Commission the whole sequence.
Test representative fence zones, gates, corners and transitions under expected operating conditions. Record sensitivity, alarm location, video association, gate bypass logic, tamper events, communications loss and restoration.
Control later changes as system changes.
A relocated camera, new sign, altered lighting, replacement gate, vegetation screen, changed sensor attachment or additional topping can affect more than one layer. Keep a baseline drawing and settings record, route proposed changes through the responsible security, electrical and fence reviewers, and repeat the affected scenario tests. Maintenance teams should be able to distinguish an approved adjustment from a temporary bypass or undocumented configuration drift.
Coordinate each layer by purpose and interface.
A device list is not an integration design. Each layer needs a defined event, physical interface, information handoff and acceptance record.
Commission the event path, not isolated devices.
The useful test begins at the fence event and ends with a recorded, understood and actionable response.
- 01
Describe representative events
Define the event location and action, the expected sensor or camera behavior, how an operator verifies it and what response follows.
- 02
Build one interface drawing
Overlay fence zones, gates, cameras, lights, cable and conduit routes, panels, service access and topping transitions so physical conflicts are visible.
- 03
Assign every handoff
Name who supplies supports, devices, power, data, software configuration, alarm mapping, bypass logic, specialist approvals and final records.
- 04
Test normal and degraded states
Include representative fence zones, gates, communication loss, device fault, maintenance bypass and restoration. Project designers must set acceptance criteria.
- 05
Record the operating baseline
Preserve zone maps, settings, associations, test results, open defects, approvals and as-built revisions for later maintenance and change control.
Project-input schedule.
Carry these fields into the enquiry, drawing review and approval record. Mark unknowns as open items instead of guessing.
Integration questions for the coordination meeting.
- Which event must each device detect, observe, verify or deter?
- Where do gates, corners, toppings, vegetation or lighting obstruct that purpose?
- Who owns supports, cable routes, power, network, software and commissioning?
- Which fence activities can create nuisance alarms and how are they managed?
- What bypass and restoration behavior is required during maintenance or gate operation?
- Which drawings, settings and test records must be delivered at handover?
