Zone purpose
Describe what the partition separates and who or what must pass through it.
Defines the commercial boundary without replacing a risk assessment.Products / Industrial Partition Mesh / Workshop Partition Fence
Complex industrial partition system
Workshop Partition Fence
A configurable mesh partition family for workshop and warehouse zoning, coordinated as panels, posts, corners, access openings, floor interfaces and project-specific safety responsibilities.
Send the plan, protected-zone purpose, heights, access schedule, floor condition, interfaces, finish, quantity and responsible-party requirements before quotation.
- System
- Panels, posts, connections and access
- Layout
- Runs, corners and openings to plan
- Evidence
- Representative family configurations
- Final basis
- Approved drawing and quotation
Where this product family fits.
- Workshop and warehouse zoning projects that can define the boundary purpose and responsible safety review.
- Modular panel layouts coordinated around columns, walls, floor conditions and access openings.
- Projects that need a supplier-supported drawing and quotation before manufacturing release.
What must not be assumed.
- A complete machine-guarding or personnel-safety solution based on appearance alone.
- Any assumed safety distance, opening limit, impact duty, interlock function or code compliance not confirmed by responsible parties.
- Use of representative warehouse images as proof of a delivered customer project or final configuration.
Define these decisions before comparing configurations.
The page collects the variables that change suitability, scope and price. It does not replace the approved drawing, quotation or responsible engineering review.
Layout
Provide plan dimensions, heights, corners, columns, walls and obstructions.
Controls panel modules and special interfaces.Access
List personnel, material and maintenance openings with clear widths.
Coordinates gates, direction of travel and hardware review.Floor interface
Describe slab condition, levels, prohibited drilling and installation scope.
Base and fixing choices depend on the supporting surface.Safety interfaces
State responsible-party requirements for distances, openings, locks, controls or interlocks.
Keeps supplier scope separate from project safety approval.Finish and delivery
Confirm colour, environment, quantity, packing, destination and schedule.
Completes manufacturing and commercial coordination.Yellow mesh partition: 2 m installed height.

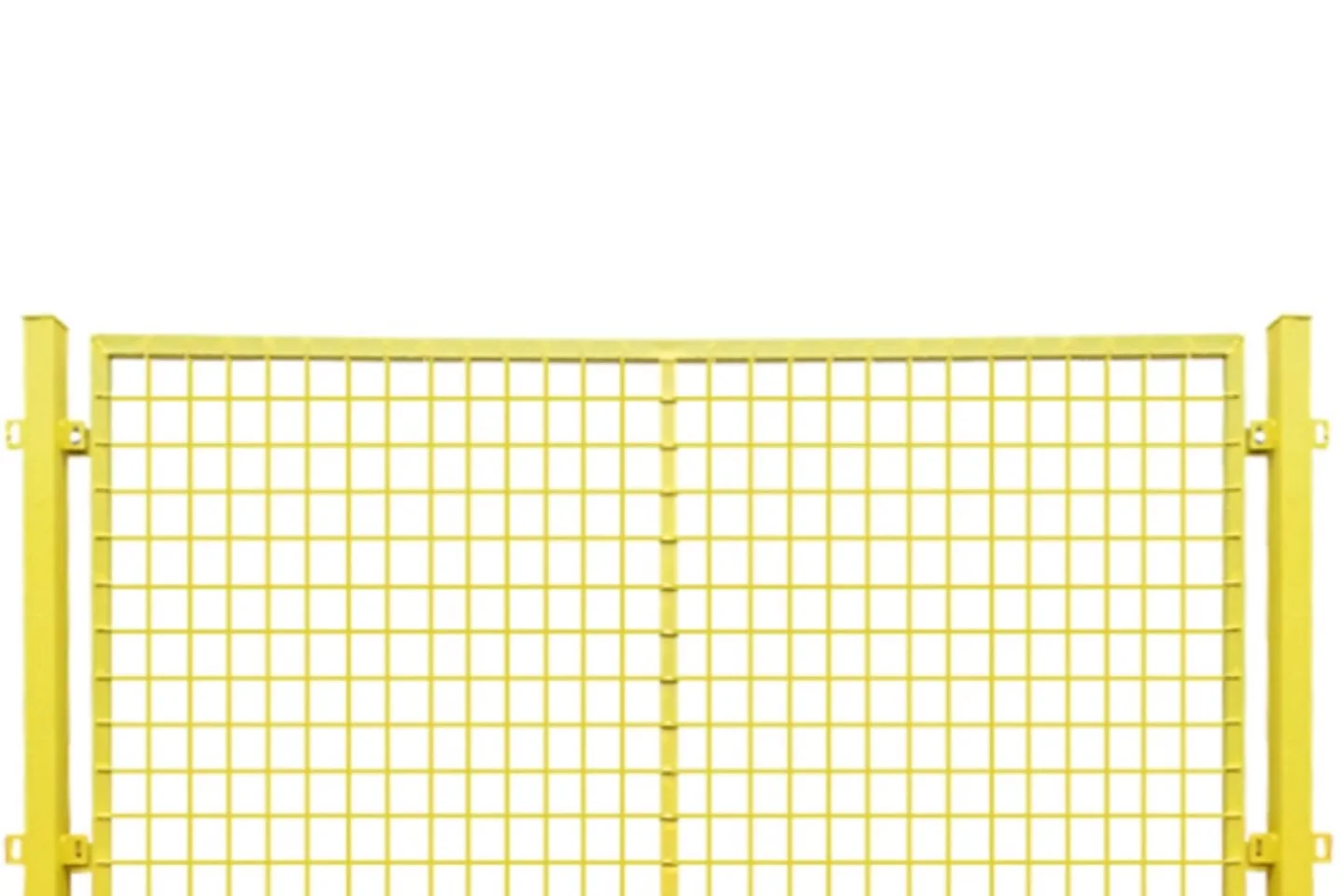

A defined configuration for workshop and warehouse zoning: 3 m post centres, 60 × 60 mm mesh and 3.8 mm wire. Other dimensions can be reviewed for your layout.
Yellow partition configuration specifications.
The following values describe this yellow steel configuration. Confirm the layout, gate openings and installation details for your project.
Send the missing inputs →| Field | Current supply basis | What to confirm |
|---|---|---|
| Installed height | 2,000 mm | Confirm the overall installed height and required floor gap. |
| Post spacing | 3,000 mm centre-to-centre | This is the distance between post centres, not the clear panel width. |
| Mesh opening | 60 × 60 mm | Confirm the opening requirement for the intended partition use. |
| Wire diameter | 3.8 mm | Confirm tolerances and measurement basis in the approved specification. |
| Steel frame | 20 × 30 mm; 1.2 mm wall thickness | Section dimensions and wall thickness are separate values. |
| Steel posts | 50 × 50 mm; 1.5 mm wall thickness | Base plates and anchors depend on the floor and installation layout. |
| Colour | Yellow colour-coated steel | Confirm colour shade and coating system for the service environment. |
| Panel set | One mesh panel and one post | Final end posts, corner posts and fittings depend on the layout. |
| Double-leaf hinged gate option | 2,000 mm high × 3,000 mm overall width | Width is for the complete two-leaf gate; confirm clear opening and hardware. |
From requirement to approved supply.
The sequence keeps product selection, engineering responsibility and commercial scope aligned.
- 01
Define the zone
Provide equipment, storage, aisle or controlled-area purpose and a plan.
- 02
Coordinate openings
Schedule personnel, material and maintenance access with clear widths.
- 03
Review interfaces
Confirm floor, columns, walls, services, locks and any controls requirements.
- 04
Approve supply
Release only after drawings, finish, scope, quantities and packing are approved.
See the system in context.
Each image explains a form, interface or possible application. Captions state where a drawing, sample or project review is still required.
Questions to resolve before purchase.
These answers define the quotation boundary without inventing project-specific performance.
Does this page define a compliant machine guard?
No. The project risk assessment, safety distances, openings, impact duty, controls, interlocks and approvals must be completed by the responsible qualified parties.
What plan information is required?
Provide the complete perimeter, height, corners, columns, walls, floor conditions, obstructions and every personnel, material and maintenance opening.
Can access doors or gates be included?
They can be reviewed when clear openings, travel direction, hardware, locking and any controls interface are defined.

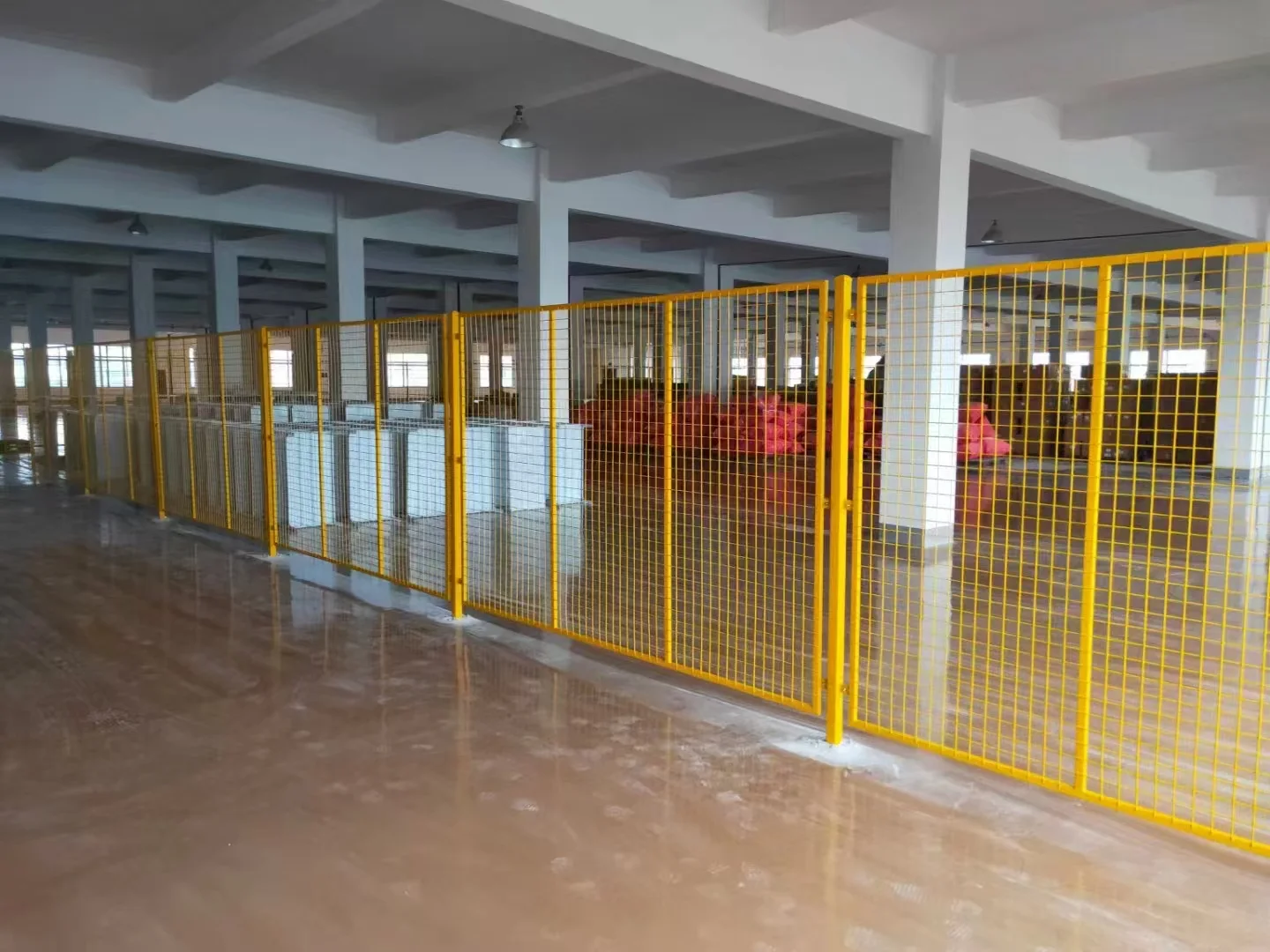

Are the yellow warehouse images customer-project evidence?
No. They are labelled representative family configurations and must not be used to claim a delivered project, installation method or compliance result.
Send a quote-ready brief.
Complete the known fields. If drawings or standards apply, mention them in project notes and attach them when your email application opens.
Submitting this local form opens your email application. It does not transmit data to the website.
Resolve the system decision before release.
Use the family guides to separate machine safety, warehouse operation, physical supply and approval responsibility.
