Duty
State the boundary and access-control purpose.
Defines suitability.Products / Welded Mesh Fencing / PVC-Coated Universal Wire Fence
Coated framed welded-mesh system

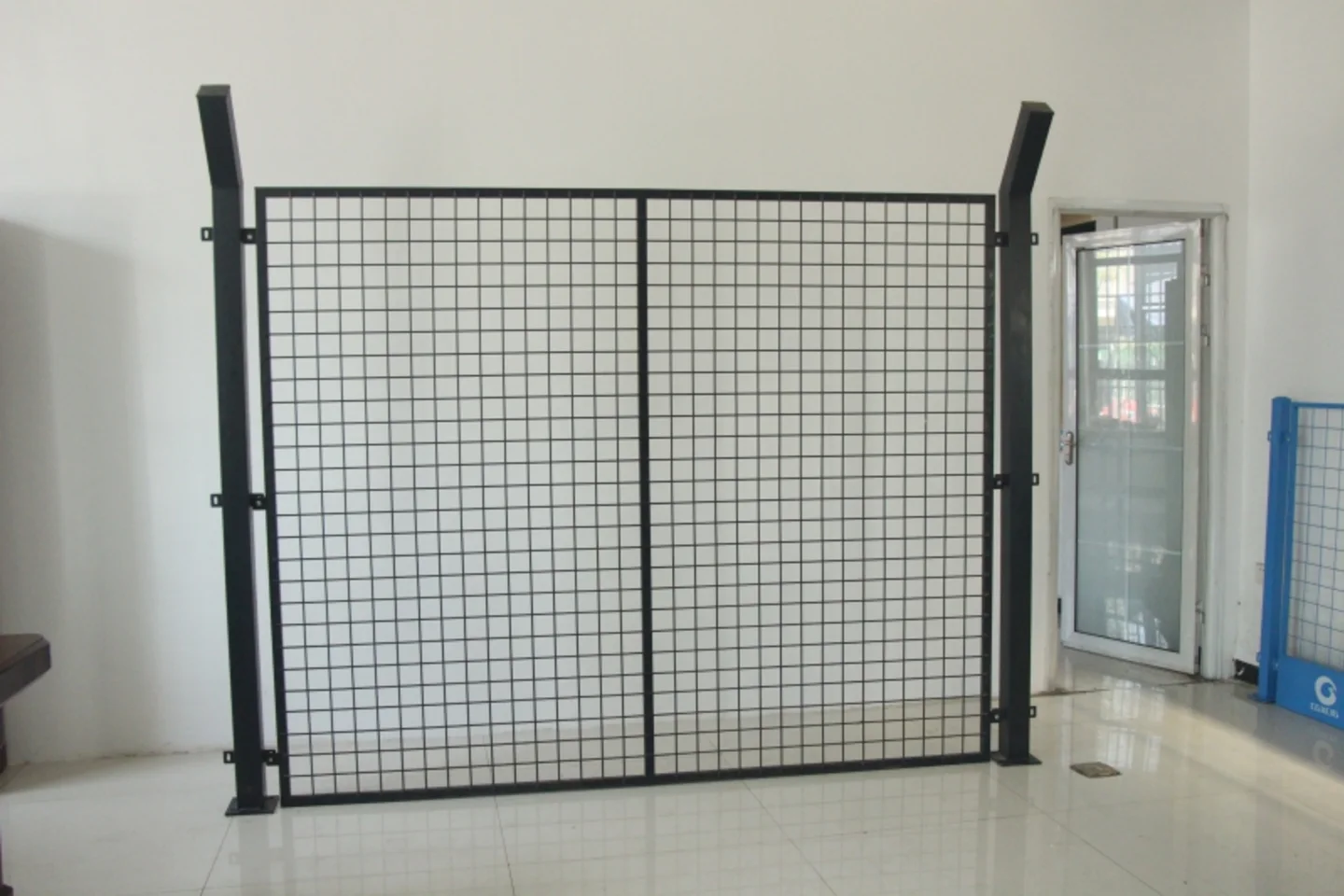

PVC-Coated Universal Wire Fence
A black PVC-coated framed welded-mesh fence family for general boundaries and utility zones, coordinated as panels, posts, clamps, bases or foundations, gates, finish and site interfaces.
Provide the boundary duty, complete layout, panel and mesh dimensions, posts, gates, floor or ground, exposure, colour and any structural or security criteria.
- Panel
- Framed welded-wire grid
- Finish
- Black coated product family
- System
- Panels, posts, connections and gates
- Final basis
- Approved drawing and quotation
Where this product family fits.

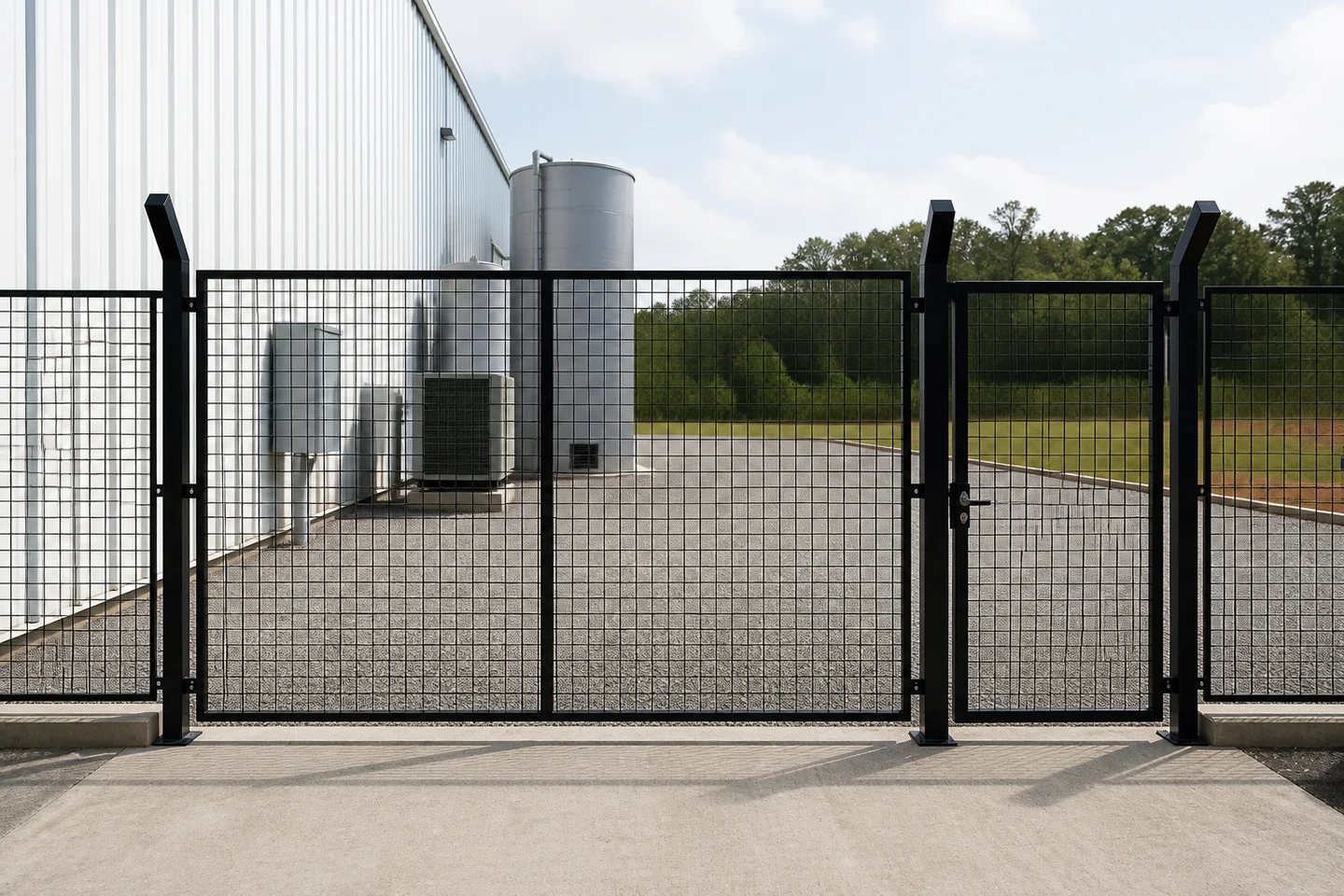

- General commercial, utility and light-industrial boundaries with a defined layout.
- Projects coordinating framed panels, posts, gates and support interfaces.
- Supply released after mesh, frame, coating and connection approval.
What must not be assumed.
- Security, impact, machine-guard or fall-protection performance inferred from appearance.
- Foundation or anchor selection without loads, soil, slab and height information.
- PVC coating treated as proof of unlimited corrosion resistance.
Define these decisions before comparing configurations.
The page collects the variables that change suitability, scope and price. It does not replace the approved drawing, quotation or responsible engineering review.
Panel
Confirm dimensions, frame, aperture and wire.
Sets fabrication.Layout
Provide runs, corners, slopes and openings.
Controls modules.Posts
State spacing, section and connection method.
Coordinates the system.Support
Provide soil, slab, anchors and design criteria.
Defines the site interface.Finish
State coating, colour and exposure.
Aligns durability review.Configurable specification sheet.
Values shown here describe the supply variables. Exact dimensions, finishes and components are confirmed for the project.
Send the missing inputs →| Field | Current supply basis | What to confirm |
|---|---|---|
| Panel | Framed welded-wire module | Confirm frame, aperture and wire. |
| Posts | Square steel posts by layout | Confirm section and spacing. |

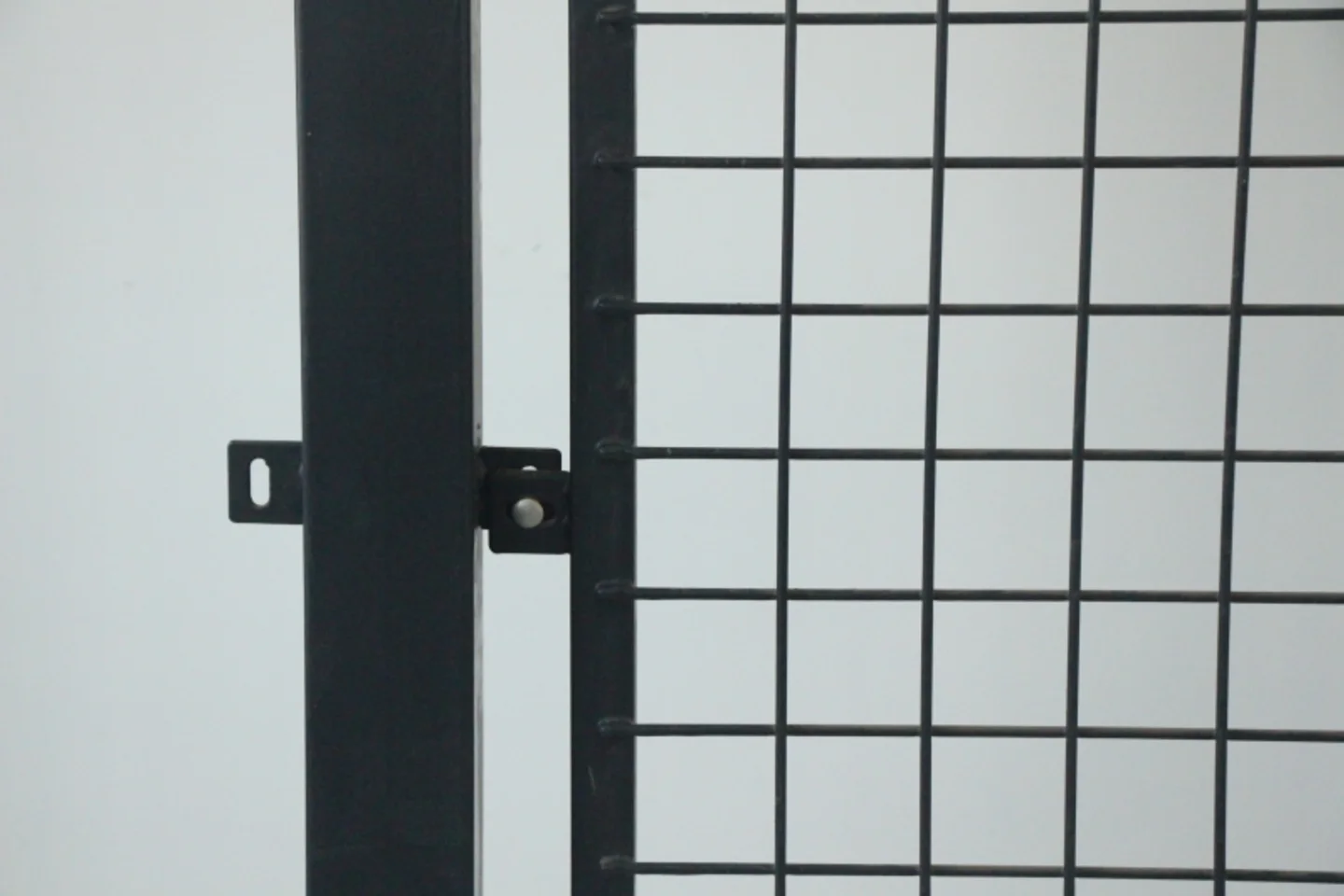

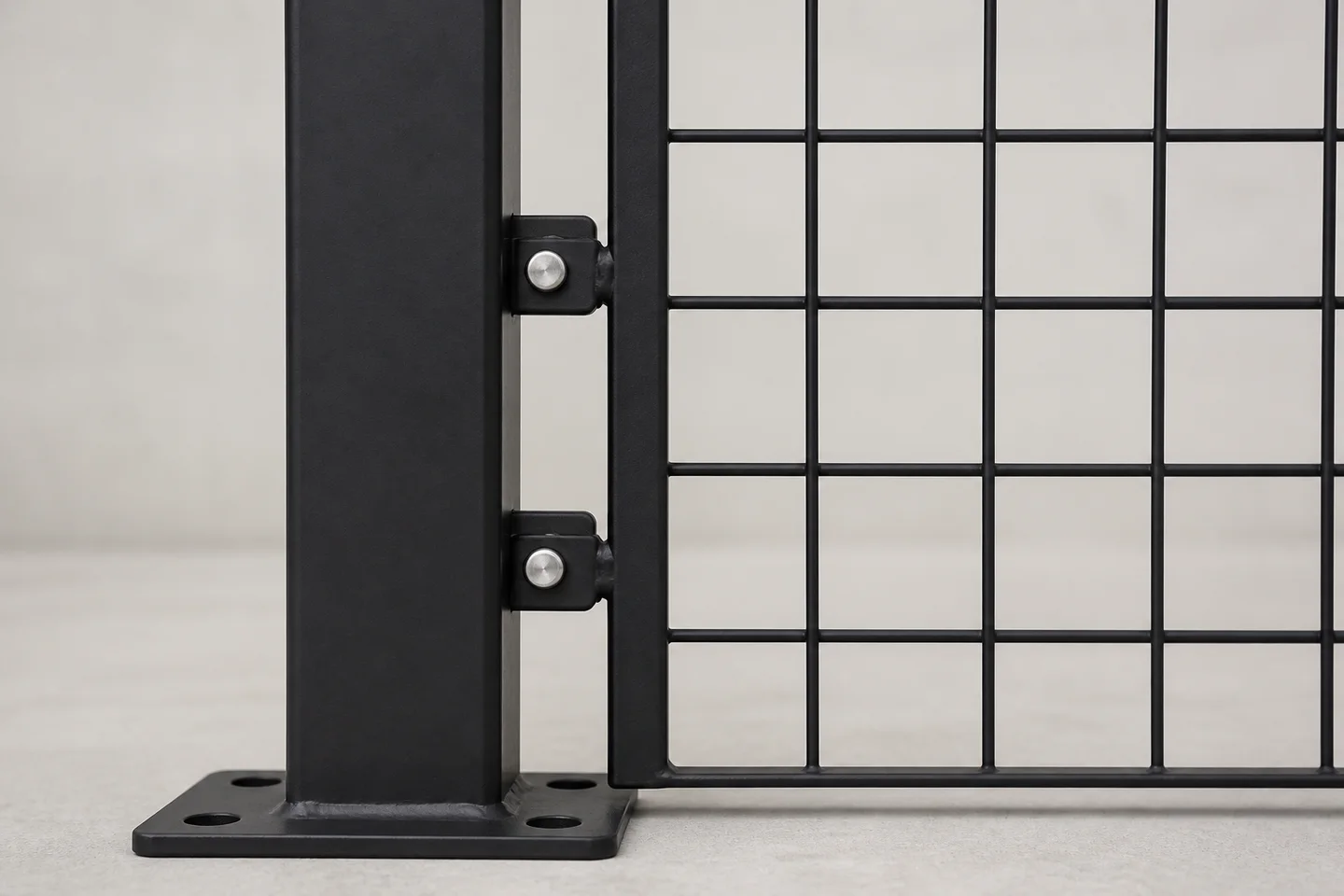

| Connections | Bolted clamps by approved system | Approve hardware and clearances. |
| Support | Embedded or base-plated option | Provide ground and anchors. |
| Gates | Matching access modules by schedule | Confirm travel and hardware. |
| Finish | Black PVC-coated family shown | Approve coating build-up and exposure. |
| Final basis | Approved drawing and quotation | No security or impact rating is implied. |
From requirement to approved supply.
The sequence keeps product selection, engineering responsibility and commercial scope aligned.
- 01
Define the duty
State the boundary, access or separation purpose and every applicable project criterion.
- 02
Confirm the layout
Provide dimensions, corners, levels, openings, supports and site interfaces.
- 03
Review the configuration
Approve material, finish, connections, accessories and responsibility boundaries.
- 04
Release supply
Confirm drawings, quantities, packing, destination, documentation and delivery timing.
See the system in context.
Each image explains a form, interface or possible application. Captions state where a drawing, sample or project review is still required.
Questions to resolve before purchase.
These answers define the quotation boundary without inventing project-specific performance.
What makes this fence universal?
It is a broad product-family description; the exact panel, post, gate and duty must be confirmed.
Can matching gates be included?
Yes, after clear width, travel, lock, hardware and support are scheduled.
Is PVC coating maintenance-free?
No. Exposure, damage, preparation, coating build-up and maintenance affect durability.
Can it be used as machine guarding?
Only after hazards, safe distance, openings, impacts, controls and the required standard are reviewed.
Send a quote-ready brief.
Complete the known fields. If drawings or standards apply, mention them in project notes and attach them when your email application opens.
Submitting this local form opens your email application. It does not transmit data to the website.
