Modular framed-mesh partition system
Framed Mesh Fence
A red coated framed-mesh panel family for workshop zoning, equipment-area separation and general controlled boundaries, coordinated as panels, posts, bases, connections, doors and site interfaces.
Provide the zone purpose, plan, height, openings, floor, equipment and maintenance clearances, access hardware, finish and applicable safety criteria before quotation.
- Panel
- Welded mesh within a steel frame
- System
- Panels, posts, bases and access
- Finish
- Red coated product family
- Final basis
- Approved layout and quotation
Where this product family fits.
- Workshop and storage zoning with a defined plan, access schedule and floor interface.
- Modular partitions coordinating posts, bases, corners and matching doors.
- Projects released after risk, clearance, hardware and responsibility review.
What must not be assumed.
- A compliant machine guard, impact barrier or fire partition inferred from colour and mesh.
- Interlocks, anchors, slab capacity or installation assumed without defined scope.
- Workshop illustrations treated as customer-project, test or compliance evidence.
Define these decisions before comparing configurations.
The page collects the variables that change suitability, scope and price. It does not replace the approved drawing, quotation or responsible engineering review.
Plan
Provide runs, corners, height and adjacent equipment.
Controls panel modules.Clearance
Define reach, maintenance and material-flow envelopes.
Prevents unsafe or impractical placement.Openings
Schedule doors, clear widths, travel and hardware.
Keeps access coordinated.Floor
Provide slab, anchors, services and restrictions.
Defines posts and bases.Controls
State locks, switches and responsibility boundaries.
Keeps control scope explicit.Configurable specification sheet.
Values shown here describe the supply variables. Exact dimensions, finishes and components are confirmed for the project.
Send the missing inputs →| Field | Current supply basis | What to confirm |
|---|---|---|
| Panels | Framed welded-mesh modules | Confirm frame, aperture and wire. |
| Posts | Matching square posts | Confirm spacing and height. |
| Bases | Floor-mounted or project support | Provide slab and anchor criteria. |
| Doors | Matching access modules by schedule | Confirm travel and hardware. |
| Controls | Locks and interfaces by agreed scope | Define responsibility separately. |
| Finish | Red coated finish shown | Approve colour and exposure. |
| Final basis | Approved risk basis, layout and quotation | No guarding result is implied. |
From requirement to approved supply.
The sequence keeps product selection, engineering responsibility and commercial scope aligned.
- 01
Define the duty
State the boundary, access or separation purpose and every applicable project criterion.
- 02
Confirm the layout
Provide dimensions, corners, levels, openings, supports and site interfaces.
- 03
Review the configuration
Approve material, finish, connections, accessories and responsibility boundaries.
- 04
Release supply
Confirm drawings, quantities, packing, destination, documentation and delivery timing.

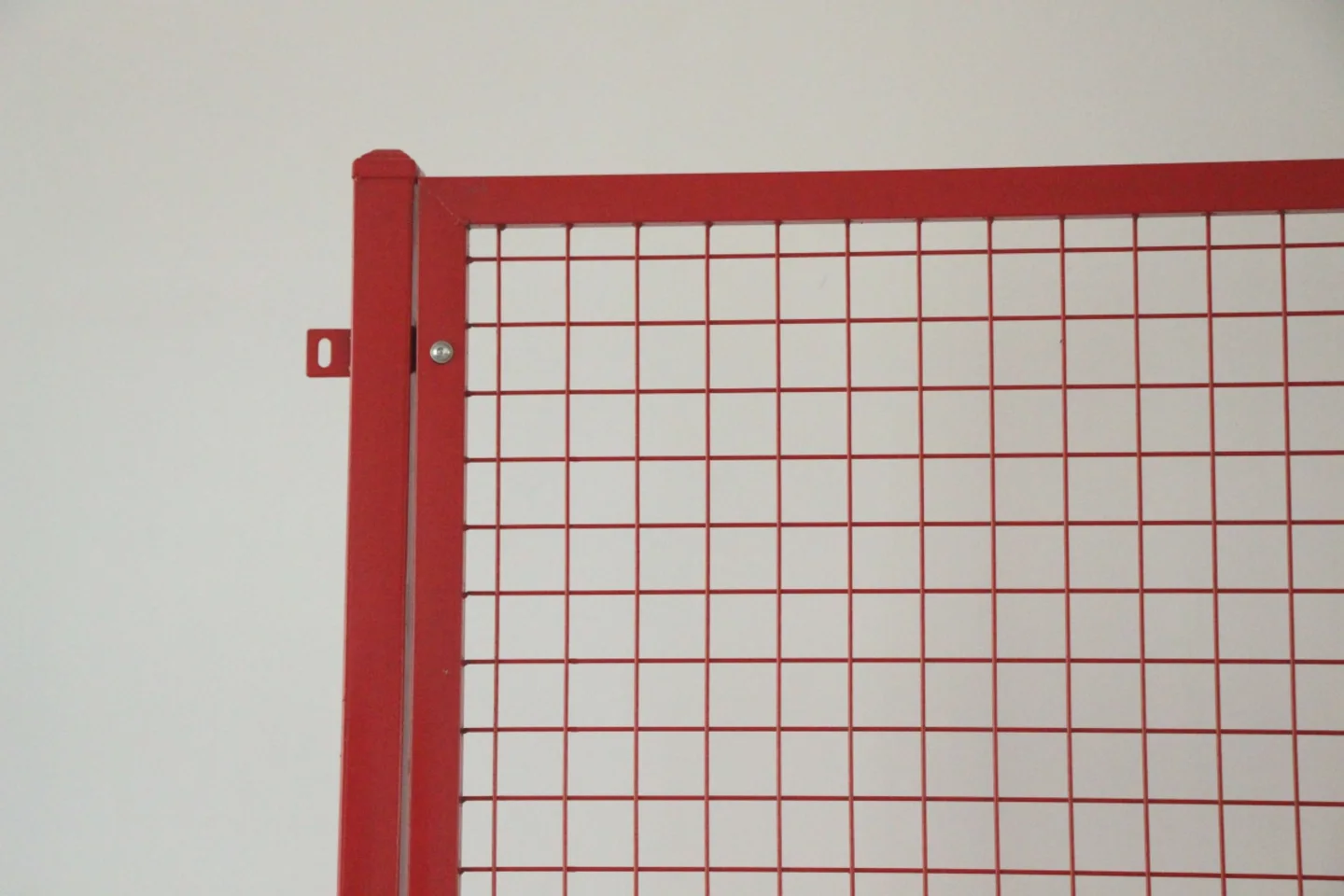

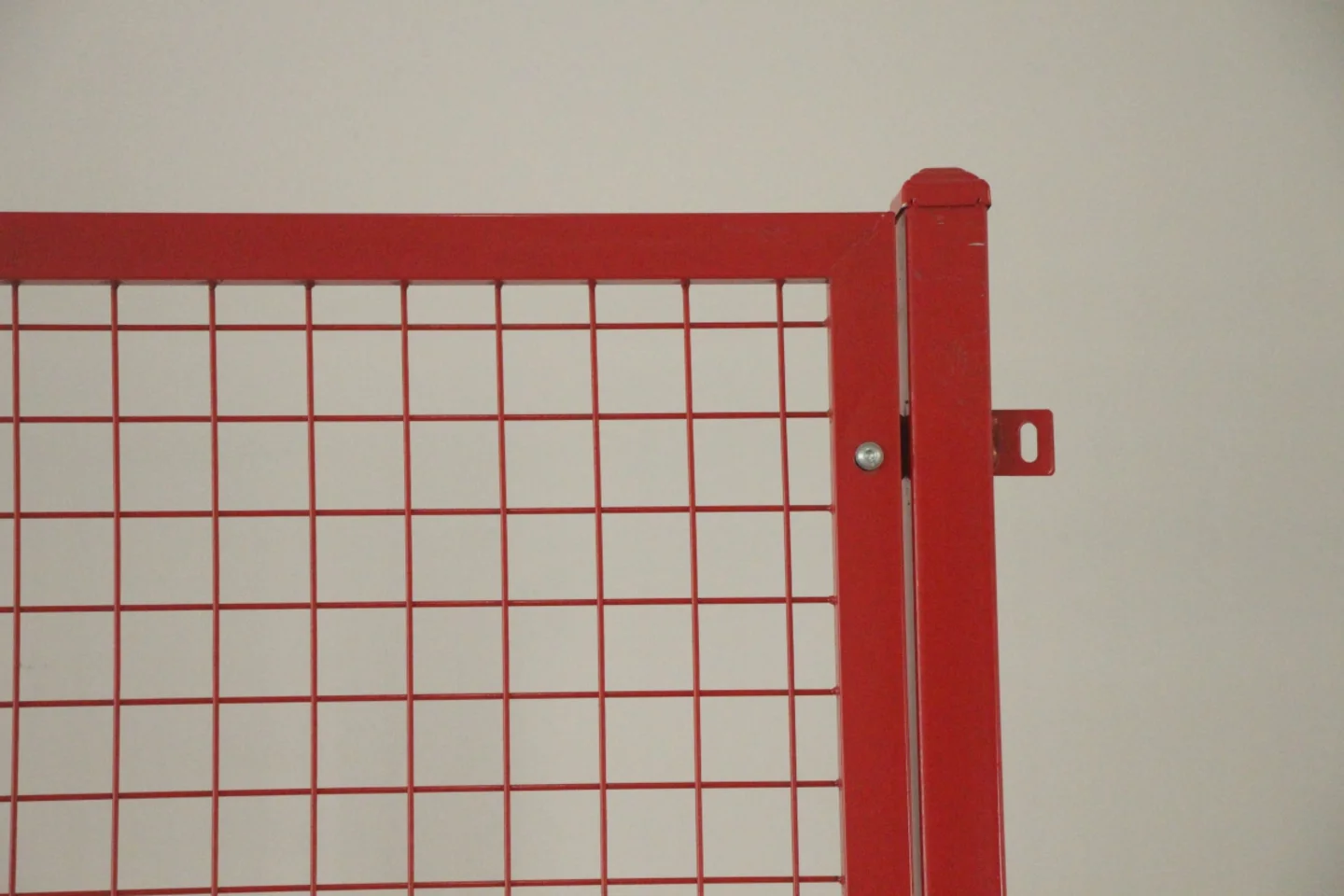

See the system in context.
Each image explains a form, interface or possible application. Captions state where a drawing, sample or project review is still required.
Questions to resolve before purchase.
These answers define the quotation boundary without inventing project-specific performance.
Is this a certified machine guard?
Not by default. Hazards, openings, safe distances, impacts, controls and the required standard must be reviewed.
Can access doors be included?
Yes, after clear widths, travel, locks, switches and controls responsibility are scheduled.
Can panels be fixed to an existing slab?
Slab thickness, reinforcement, services, edge distances and anchor criteria are required.
Is the workshop image a completed project?
No. It is a representative product-family illustration, not installation or compliance evidence.
Send a quote-ready brief.
Complete the known fields. If drawings or standards apply, mention them in project notes and attach them when your email application opens.
Submitting this local form opens your email application. It does not transmit data to the website.
