Duty
Name the animal, pest or screening function.
Defines the opening and strength questions.Products / Welded Mesh Fencing / Electro-Galvanized Small-Animal Mesh

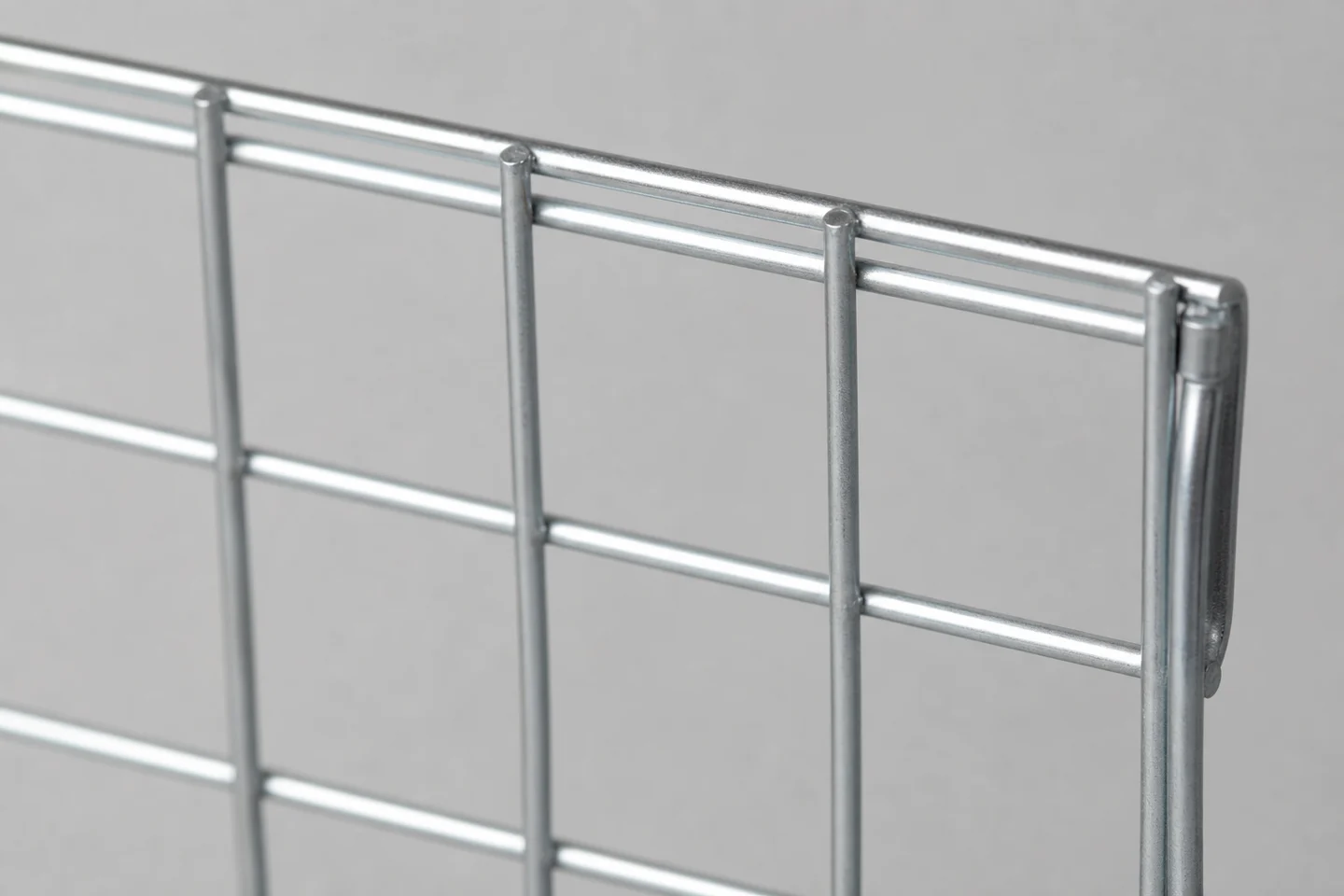

Small-aperture welded wire mesh
Electro-Galvanized Small-Animal Mesh
An electro-galvanized welded-wire mesh family supplied in rolls or sheets for light small-animal enclosures and general screening, selected by aperture, wire diameter, roll or sheet size, edge condition and exposure.
State the target animal or screening duty, maximum opening, wire diameter, roll or sheet dimensions, support spacing, fixing method, exposure and required durability.
- Form
- Welded wire roll or sheet
- Finish
- Electro-galvanized product family
- Selection
- Aperture and wire by duty
- Final basis
- Approved specification and quotation
Where this product family fits.
- Light small-animal enclosures where aperture, support and fixing are properly selected.
- General screening and partition uses within the confirmed wire and exposure limits.
- Roll or sheet supply specified by mesh opening, wire, size and quantity.
What must not be assumed.
- Containment performance selected only from an animal photograph or product name.
- Coastal, chemical or continuously wet exposure without a corrosion-system review.
- Structural, fall-protection, food-contact or high-security duties without verified criteria.
Define these decisions before comparing configurations.
The page collects the variables that change suitability, scope and price. It does not replace the approved drawing, quotation or responsible engineering review.
Aperture
State maximum acceptable opening.
Controls exclusion or containment geometry.Wire
Confirm diameter and welded construction.
Affects handling and support needs.Supply
Provide roll width, length or sheet size.
Defines packing and yield.Support
State post or frame spacing and fixings.
Prevents unsupported use.Exposure
Describe moisture, chemicals and required life.
Determines whether electro-galvanizing is suitable.Configurable specification sheet.
Values shown here describe the supply variables. Exact dimensions, finishes and components are confirmed for the project.
Send the missing inputs →| Field | Current supply basis | What to confirm |
|---|---|---|
| Mesh | Welded rectangular or square apertures | Confirm opening in both directions. |
| Wire | Low-carbon steel wire by specification | Confirm diameter and tolerance. |
| Finish | Electro-galvanized surface | Review environment and durability. |
| Supply | Rolls or sheets by order | Confirm width, length and packing. |
| Edges | Cut or project-defined edge condition | State handling and trim needs. |
| Fixings | Clips, staples or frame by scope | Provide support material and spacing. |
| Final basis | Approved specification and quotation | No containment life is implied by images. |
From requirement to approved supply.
The sequence keeps product selection, engineering responsibility and commercial scope aligned.
- 01
Define the duty
State the boundary, access or separation purpose and every applicable project criterion.
- 02
Confirm the layout
Provide dimensions, corners, levels, openings, supports and site interfaces.
- 03
Review the configuration
Approve material, finish, connections, accessories and responsibility boundaries.
- 04
Release supply
Confirm drawings, quantities, packing, destination, documentation and delivery timing.

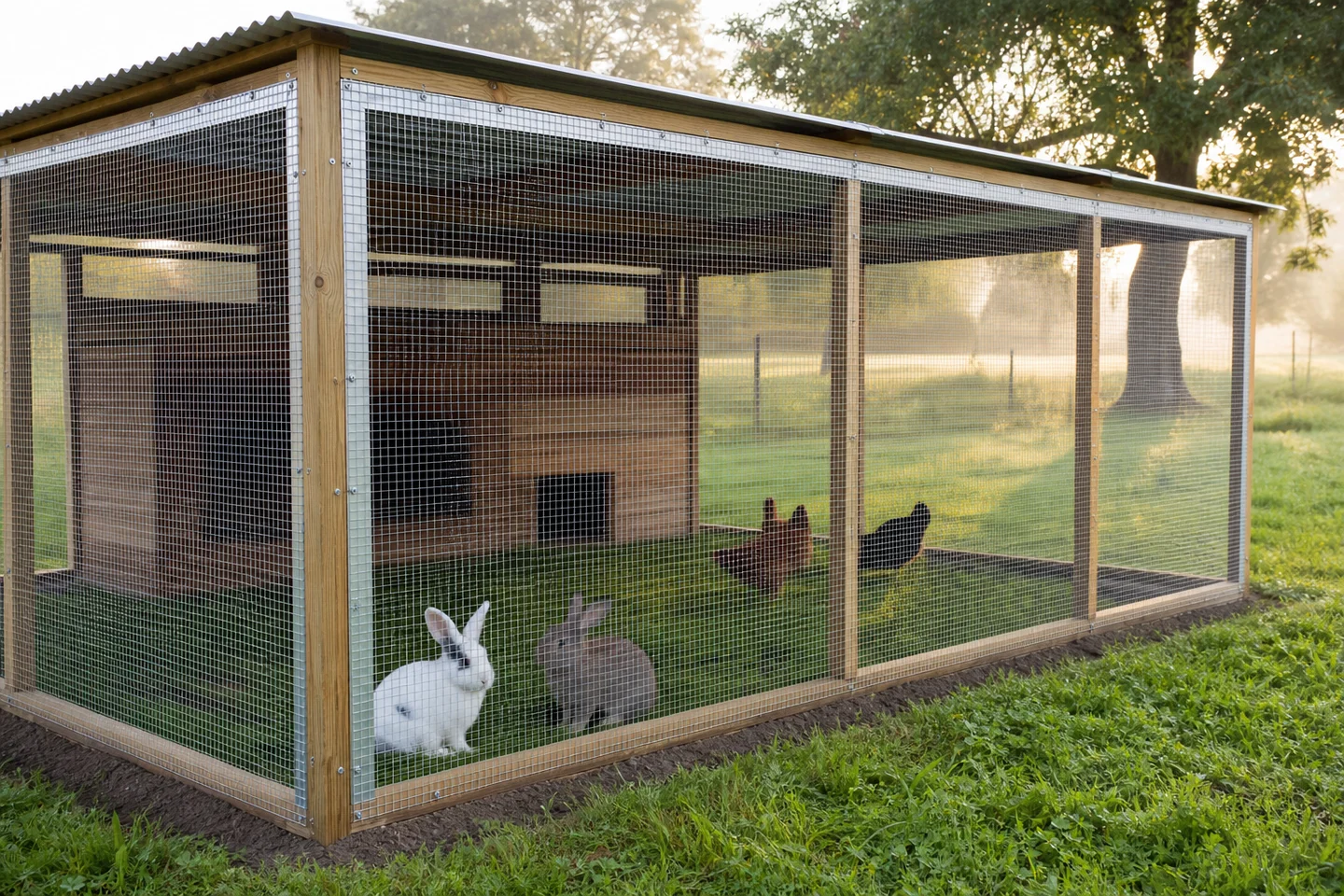

See the system in context.
Each image explains a form, interface or possible application. Captions state where a drawing, sample or project review is still required.
Questions to resolve before purchase.
These answers define the quotation boundary without inventing project-specific performance.
Which aperture contains my animal?
Provide the species, age or size, behaviour and maximum acceptable opening; samples may be appropriate.
Is electro-galvanized mesh suitable outdoors?
Suitability depends on moisture, salts, chemicals, exposure duration and required service life.
Can it be supplied in custom rolls?
Options can be reviewed from width, length, aperture, wire, quantity and production limits.
Does the enclosure image guarantee containment?
No. Supports, fixings, aperture, wire and animal behaviour all affect the result.
Send a quote-ready brief.
Complete the known fields. If drawings or standards apply, mention them in project notes and attach them when your email application opens.
