Duty
State the boundary function and access-control objective.
Defines the required system without inventing a security rating.Products / Welded Mesh Fencing / Double-Wire Perimeter Fence
Standard perimeter fence system
Double-Wire Perimeter Fence
A welded double-wire perimeter system configured as panels, posts, fixings, gates and site interfaces rather than as a panel-only purchase.
Send the perimeter drawing, fence heights, gate schedule, ground conditions, finish, quantity and destination for a coordinated quotation.
- System
- Panels, posts, fixings and gates
- Geometry
- Panel and bay layout to project
- Finish
- Galvanized and coated options
- Final basis
- Approved drawing and quotation
Where this product family fits.
- Permanent perimeter projects that need a rigid welded-mesh panel and coordinated posts.
- Sites that can provide a fence-line drawing, gate openings and foundation conditions.
- Projects procuring panels, posts, fixings, gates and packing as one scope.
What must not be assumed.
- Projects requiring an unverified high-security, crash or structural performance rating.
- Temporary works where reusable freestanding bases are the controlling requirement.
- Panel-only comparison without confirming post, gate and civil interfaces.
Define these decisions before comparing configurations.
The page collects the variables that change suitability, scope and price. It does not replace the approved drawing, quotation or responsible engineering review.
Layout
Provide runs, heights, corners, level changes and interfaces.
Controls panel counts, post positions and special bays.Panel
Confirm aperture, wire arrangement, height and top profile.
Separates visual preference from the actual configuration.Posts and fixings
Define post form, base or embedment and connection preference.
Keeps panels and supports compatible.Gates
List pedestrian, vehicle and service openings with clear widths.
Prevents gates becoming a late, incompatible addition.Exposure and delivery
State finish, colour, environment, quantity and destination.
Completes coating, packing and commercial review.Configurable specification sheet.
Values shown here describe the supply variables. Exact dimensions, finishes and components are confirmed for the project.
Send the missing inputs →| Field | Current supply basis | What to confirm |
|---|---|---|
| Panel construction | Welded double-wire mesh panel | Wire arrangement and aperture confirmed per quotation. |
| Panel geometry | Height, width and top profile to project | Coordinate special bays, corners and changes in level. |
| Posts | Project-selected steel posts | Section, centres and base condition require confirmation. |
| Connections | Clips, clamps or framed connections | Tamper resistance or tool access must be specified if required. |
| Gates | Pedestrian, vehicle or service openings | Provide clear opening, swing/slide direction and hardware brief. |
| Finish | Galvanized and powder- or PVC-coated options | Exposure and colour requirements belong in the quote brief. |
| Packing | Separated panels and bundled system components | Packing plan confirmed against quantity and destination. |
From requirement to approved supply.
The sequence keeps product selection, engineering responsibility and commercial scope aligned.
- 01
Draw the perimeter
Mark runs, corners, gradients, walls, obstructions and each access opening.
- 02
Configure the bays
Confirm panel height, post centres, top profile and any non-standard bay.
- 03
Coordinate gates
Set clear openings, hardware, posts and interfaces before final panel count.
- 04
Approve supply
Confirm finish, component list, packing, delivery and the approved drawing.
See the system in context.
Each image explains a form, interface or possible application. Captions state where a drawing, sample or project review is still required.
Questions to resolve before purchase.
These answers define the quotation boundary without inventing project-specific performance.
What should the perimeter drawing show?
Show every run, height, corner, change in level, wall interface, opening and gate clear width. Add ground and foundation notes where known.
Can panels and gates be supplied together?
Yes, when the gate schedule, clear openings, post arrangement, hardware brief and finish are included in the quotation scope.

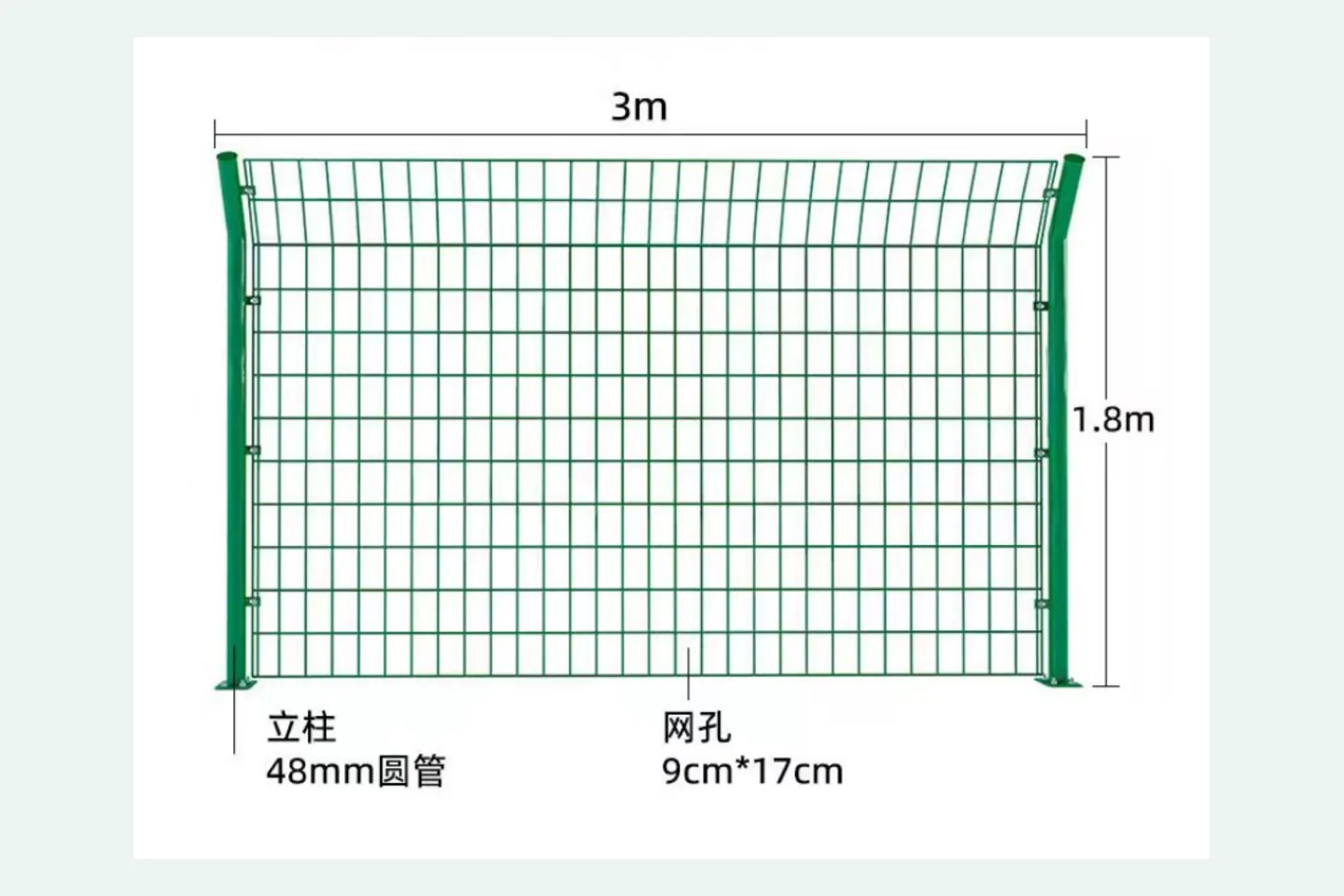

Is the dimension drawing a standard offer?
No. It shows one example configuration. Final panel, aperture, wire, post and gate dimensions are confirmed in the approved quotation and drawing.
Which finish should be selected?
Provide the environment, colour and coating requirements. The supplier can then confirm available galvanized, powder-coated or PVC-coated configurations.
Send a quote-ready brief.
Complete the known fields. If drawings or standards apply, mention them in project notes and attach them when your email application opens.
