Defines the panel family.Products / Welded Mesh Fencing / Black 3D Bend Mesh Fence
V-bend welded panel perimeter
Black 3D Bend Mesh Fence
A black coated welded-mesh fence family using formed reinforcement bends, posts, clips, bases or foundations and matching access modules for commercial, residential and general boundary projects.
Provide the perimeter plan, height, aperture and wire requirement, bend pattern, posts, base or foundation, gates, exposure and required performance criteria.
- Panel
- Welded mesh with formed V bends
- Finish
- Black coated product family
- System
- Panels, posts, clips and gates
- Final basis
- Approved drawing and quotation
Where this product family fits.
- Commercial, residential and light-industrial boundaries with a defined duty and layout.
- Panel systems coordinating posts, clips, corners, levels and access gates.
- Projects that approve aperture, wire, bends, finish and foundation interface.
What must not be assumed.
- High-security, anti-climb, impact or fall-protection performance inferred from V bends.
- Posts, bases or foundations selected without wind, ground and height information.
- Application imagery treated as installation, test or compliance evidence.
Define these decisions before comparing configurations.
The page collects the variables that change suitability, scope and price. It does not replace the approved drawing, quotation or responsible engineering review.
Panel
Confirm height, width, aperture, wire and bend pattern.
Sets panel construction.Layout
Provide runs, corners, slopes and levels.
Controls modules and stepping.Posts
State post form, spacing and cap requirement.
Defines connections.Foundation
Provide soil, slab, base and anchor criteria.
Required for support review.Gates
Schedule clear widths, travel and hardware.
Keeps access in scope.Configurable specification sheet.
Values shown here describe the supply variables. Exact dimensions, finishes and components are confirmed for the project.
Send the missing inputs →| Field | Current supply basis | What to confirm |
|---|---|---|
| Panel | V-bend welded mesh | Confirm aperture, wire and bends. |
| Posts | Square or project-selected steel posts | Confirm spacing and section. |
| Connections | Clips or clamps by system | Approve hardware and tamper needs. |
| Support | Embedded, base-plated or project interface | Provide ground and loads. |
| Gates | Matching modules by schedule | Confirm clear widths and hardware. |
| Finish | Black coated finish shown | Approve coating and exposure. |
| Final basis | Approved drawing and quotation | No security rating is implied. |
From requirement to approved supply.
The sequence keeps product selection, engineering responsibility and commercial scope aligned.
- 01
Define the duty
State the boundary, access or separation purpose and every applicable project criterion.
- 02
Confirm the layout
Provide dimensions, corners, levels, openings, supports and site interfaces.
- 03
Review the configuration
Approve material, finish, connections, accessories and responsibility boundaries.
- 04
Release supply
Confirm drawings, quantities, packing, destination, documentation and delivery timing.

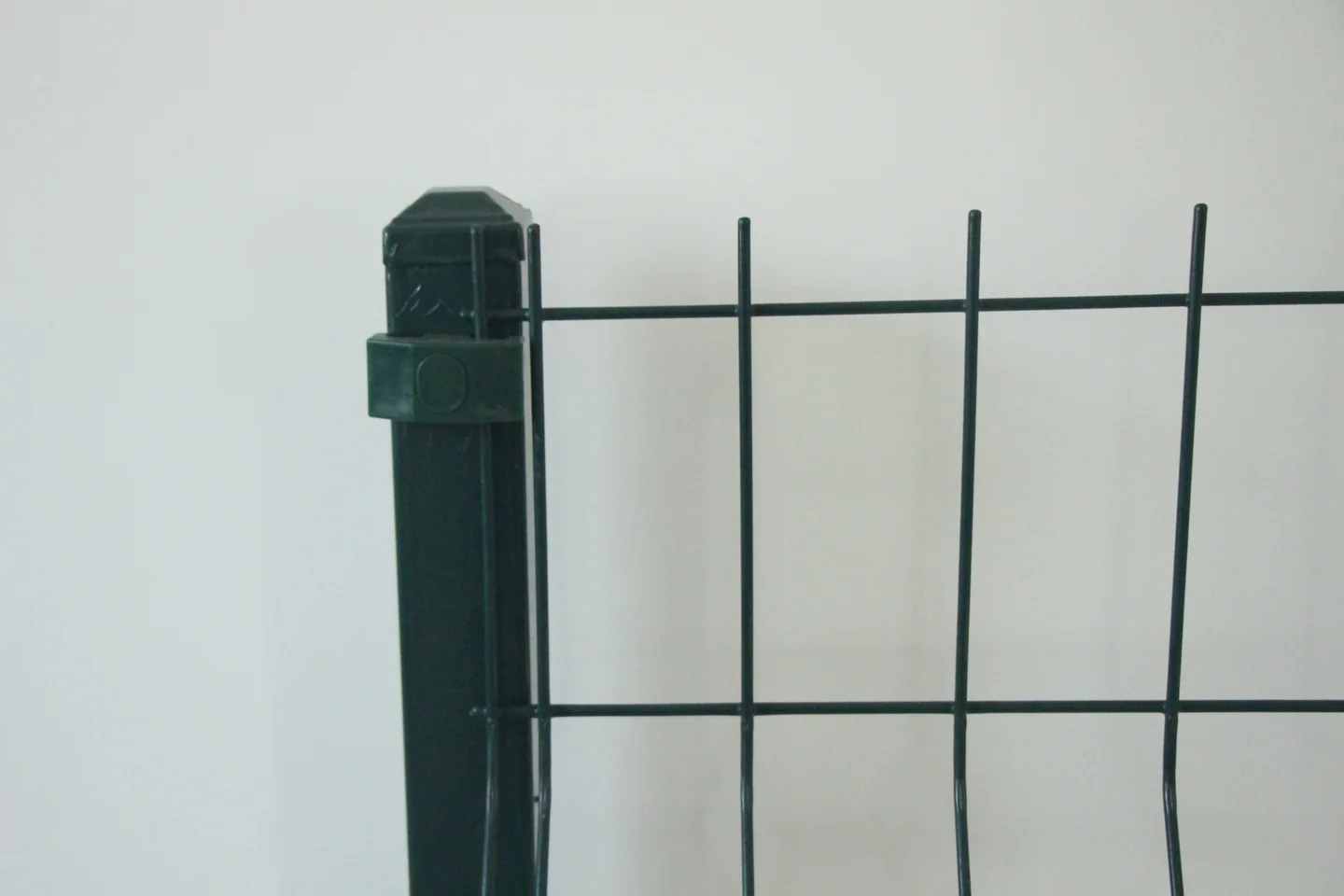

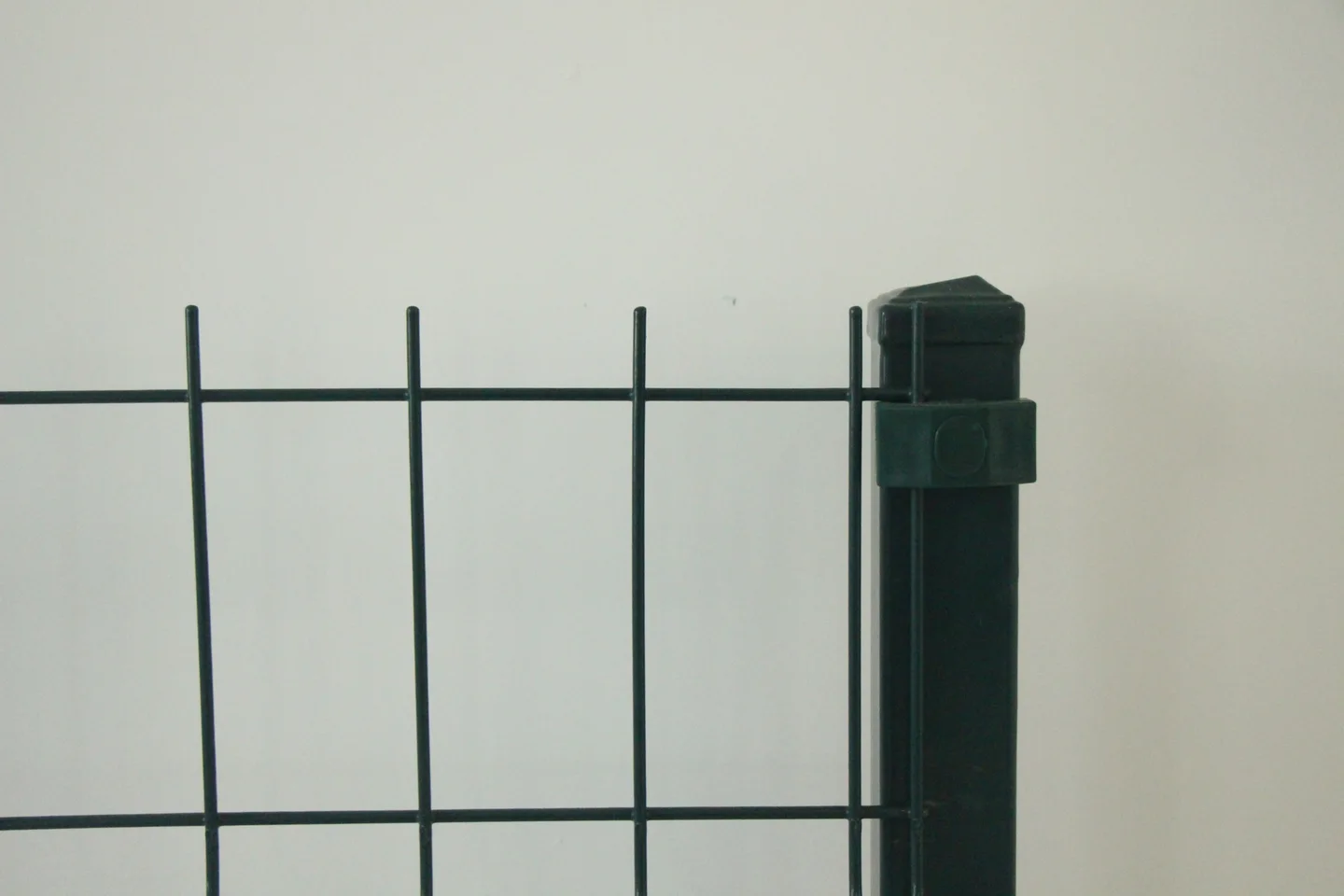

See the system in context.
Each image explains a form, interface or possible application. Captions state where a drawing, sample or project review is still required.
Questions to resolve before purchase.
These answers define the quotation boundary without inventing project-specific performance.
What do the V bends do?
They form the panel geometry, but no stiffness or load result should be assumed without the specification.
Can gates match the fence?
Yes, after clear width, travel, hardware and support interfaces are scheduled.
Can posts be base-plated?
That option depends on slab, anchors, loads, height and edge distances.
Does black coating define corrosion life?
No. State the substrate preparation, coating system, exposure and required durability.
Send a quote-ready brief.
Complete the known fields. If drawings or standards apply, mention them in project notes and attach them when your email application opens.
