Defines opening and height questions.Products / Railway & Highway Protection Mesh / Bridge Anti-Throw Mesh
Infrastructure edge-screen system
Bridge Anti-Throw Mesh
A framed mesh screen family for bridge, overpass and elevated-road edges, coordinated around panel type, posts, bases, parapet interfaces, openings, finish and project-defined structural criteria.
Provide the bridge layout, parapet geometry, screen height, design loads, opening limits, corrosion environment, access and responsible engineering basis before quotation.
- System
- Framed mesh panels and steel posts
- Interface
- Parapet, curb or project support
- Engineering
- Site loads and approvals required
- Final basis
- Approved design and quotation
Where this product family fits.
- Bridge and overpass edge-screen projects with defined geometry, loading and parapet interfaces.
- Supply packages that coordinate panels, posts, bases, fasteners and corrosion protection.
- Projects released from responsible structural and road-owner review.
What must not be assumed.
- Throw-prevention performance, containment, fall protection or load capacity inferred from mesh appearance.
- Post, anchor or parapet design without project loads and substrate information.
- Existing road images presented as proof of a delivered project or code result.
Define these decisions before comparing configurations.
The page collects the variables that change suitability, scope and price. It does not replace the approved drawing, quotation or responsible engineering review.
Layout
Provide runs, curves, grades, joints and screen height.
Controls panel and post planning.Loads
Provide wind, impact and project load criteria.
Required for structural review.Parapet
Send dimensions, reinforcement constraints and anchor zones.
Defines the support interface.Access
Identify inspection, maintenance and emergency openings.
Keeps operational access in scope.Finish
State exposure, coating and colour requirements.
Aligns corrosion protection.Configurable specification sheet.
Values shown here describe the supply variables. Exact dimensions, finishes and components are confirmed for the project.
Send the missing inputs →| Field | Current supply basis | What to confirm |
|---|---|---|

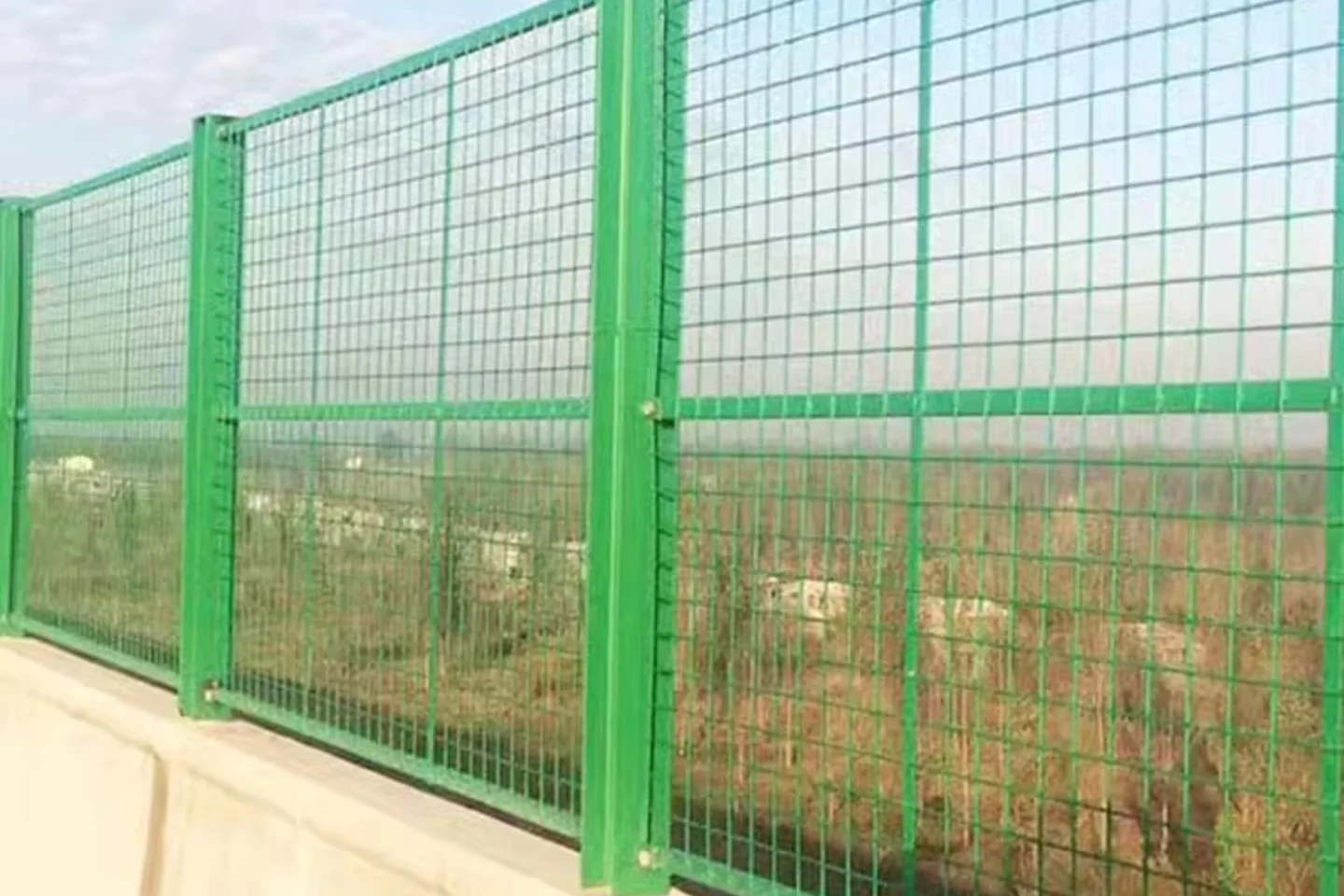

| Panel | Framed welded or chain-link mesh by project | Confirm opening, wire and frame. |
| Posts | Steel posts by approved spacing | Provide design loads and geometry. |

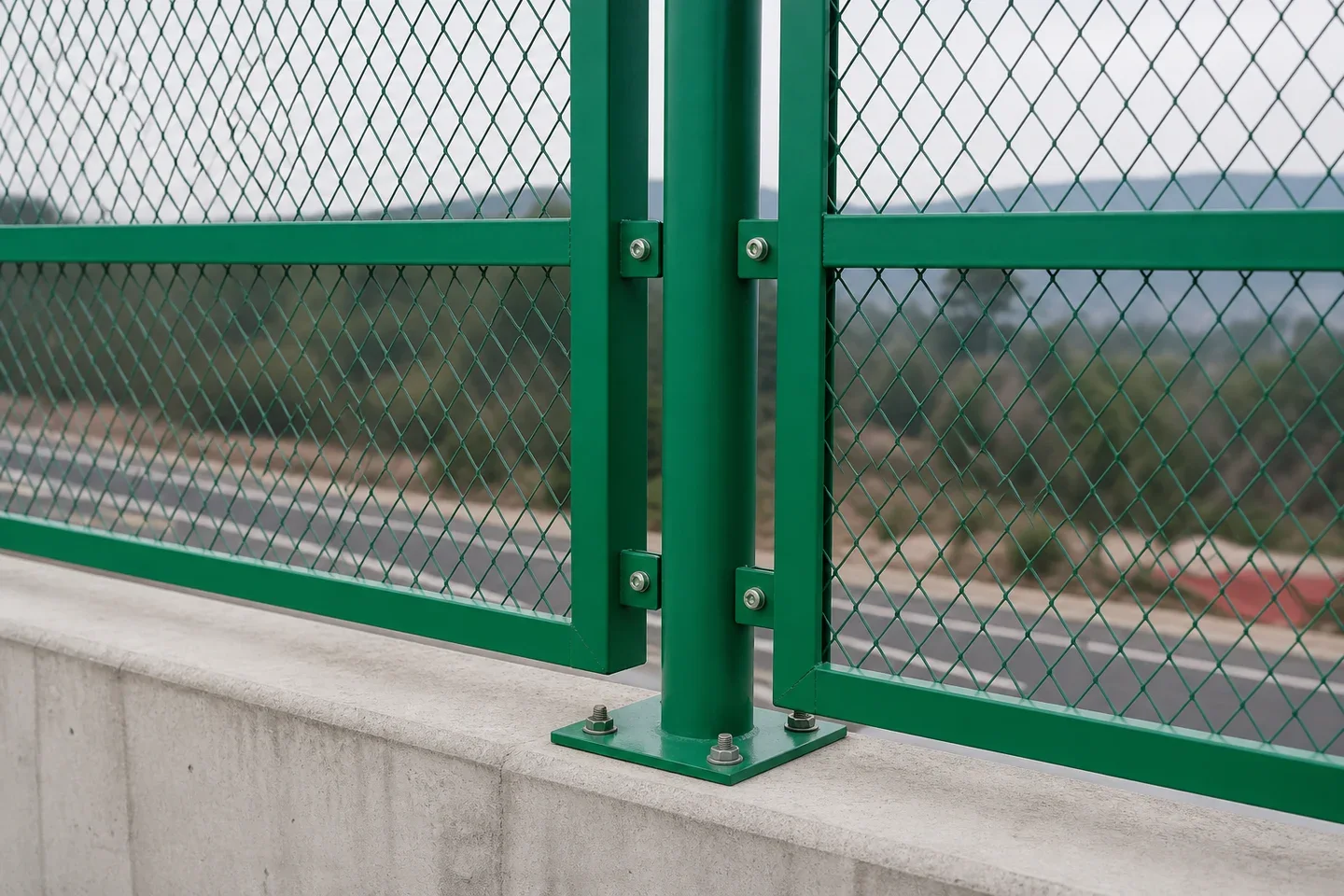

| Base | Base-plate or project-defined interface | Confirm parapet and anchors. |
| Height | Project-defined screen height | State road-owner requirement. |
| Finish | Galvanized or coated system | Confirm corrosion category and colour. |
| Documentation | Drawings and calculations by agreed scope | List review and approval needs. |
| Final basis | Approved project design and quotation | Images do not prove performance. |
From requirement to approved supply.
The sequence keeps product selection, engineering responsibility and commercial scope aligned.
- 01
Define the duty
State what the system must separate, screen, protect or control and provide the applicable project criteria.
- 02
Confirm the layout
Provide dimensions, levels, corners, openings, supports and every site interface.
- 03
Review the configuration
Approve materials, finish, connections, accessories and the engineering or installation responsibility boundary.
- 04
Release supply
Confirm drawings, quantities, packing, destination, documentation and required delivery date.

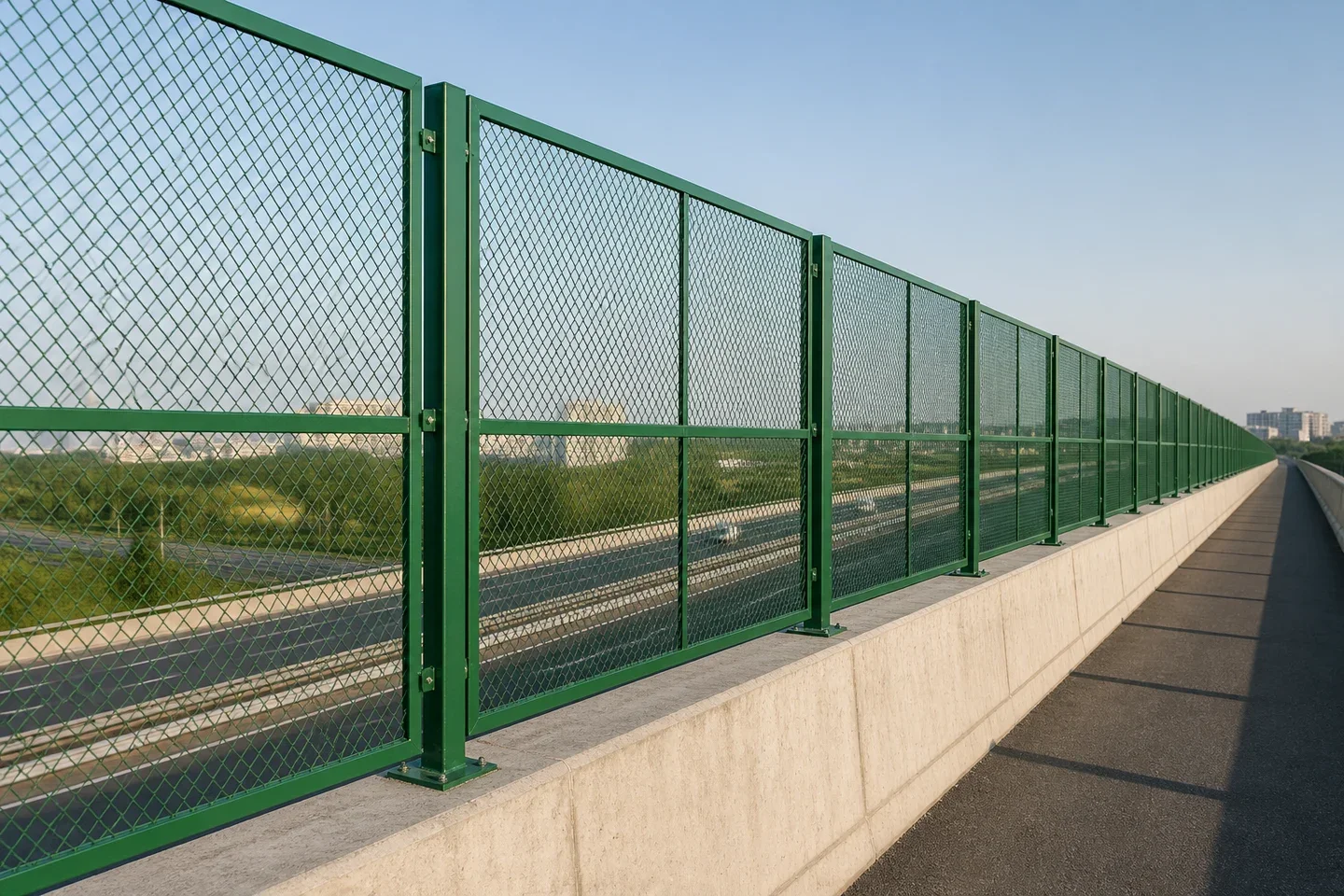

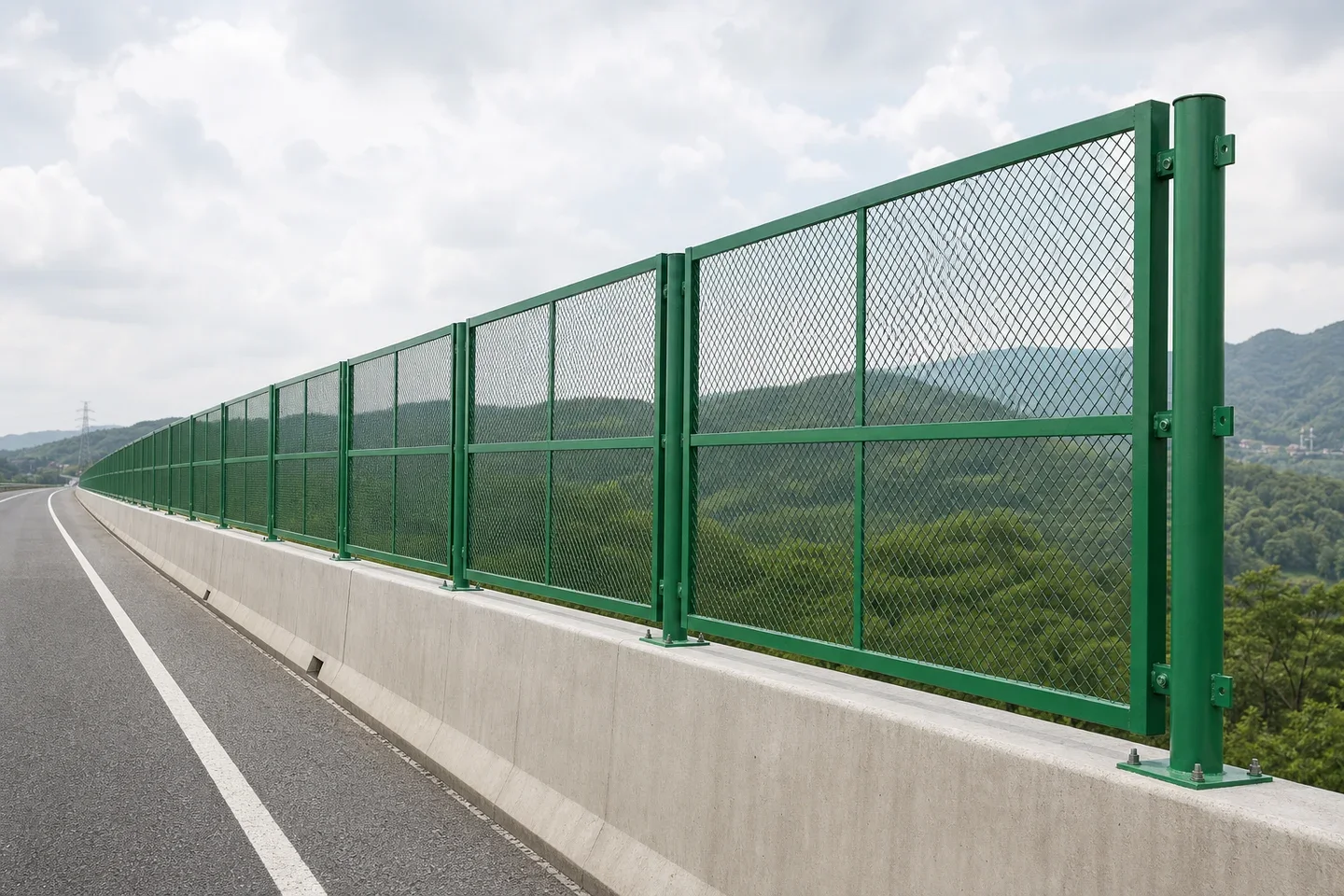

See the system in context.
Each image explains a form, interface or possible application. Captions state where a drawing, sample or project review is still required.
Questions to resolve before purchase.
These answers define the quotation boundary without inventing project-specific performance.
Does this page certify anti-throw performance?
No. State the road-owner criteria, object-control requirement, loads and verification documents.
Can posts and anchors be designed from photos?
No. Parapet geometry, reinforcement, loads and design responsibility are required.
Can curved or graded runs be supplied?
They can be reviewed from the alignment, joint and elevation information.
Are the roadway images completed projects?
They are product-family context and do not prove ownership, delivery or compliance.
Send a quote-ready brief.
Complete the known fields. If drawings or standards apply, mention them in project notes and attach them when your email application opens.
Submitting this local form opens your email application. It does not transmit data to the website.
Plan the bridge-screen enquiry.
Three buyer guides separate the duty, interface information and supplier evidence. They do not specify structural details or authorize site work.
Bridge Screens, Vehicle Barriers & Boundary Fences: Choose the Duty
Separate object screening, vehicle containment, boundary control and acoustic duties before choosing a product.
Bridge Screen Interface Brief: Parapets, Joints & Access
Collect drawings, interface IDs and review responsibilities without guessing connection details.
Bridge Anti-Throw Mesh RFQ & Evidence Checklist
Prepare comparable enquiries and request evidence for the exact offer. Download a reusable text checklist.
